H18 Fully Hardened 3003 Aluminum Tube 3 Series Aluminum Alloy With External Diameter Φ 18 mm
| Place of Origin | From Changzhou, Jiangsu Province |
|---|---|
| Brand Name | YunNeng |
| Certification | ISO9001 ISO14001 ISO45001 |
| Model Number | 3003 |
| Minimum Order Quantity | 3 tons |
| Price | negotiation |
| Packaging Details | Standard export packaging |
| Delivery Time | 30 working days after received your down payment |
| Payment Terms | T/T |
| Supply Ability | 50,000 mt per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Antiseptic And Antirust | Model Number | 3003 |
|---|---|---|---|
| Product Materia | Aluminum Or Aluminum Alloy | Status | H18 |
| Shape | Round | Outside Diameter | 18mm |
| Wall Thickness | 1.1mm | Specification | According To The National Standards Or According To Customer Special Requirements For Customization |
| High Light | H18 3003 Aluminum Tube,Fully Hardened 3003 Aluminum Tube,3003 aluminum tubing 18mm |
||
Product Description

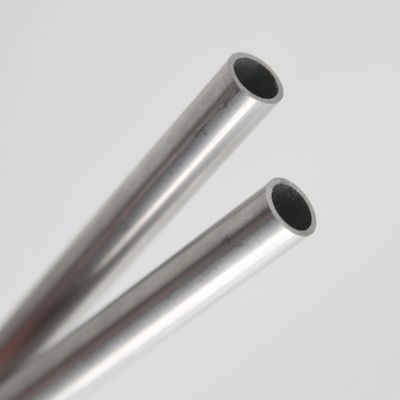

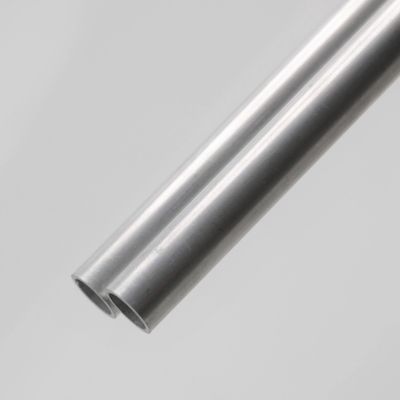

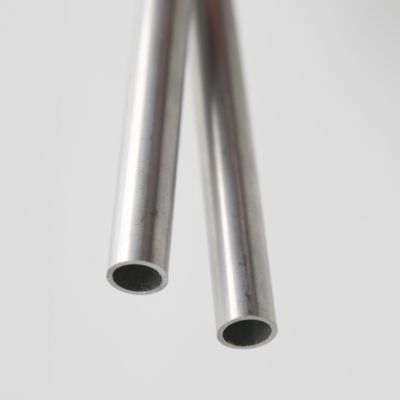

3003 H18 Fully Hardened 3 Series Aluminum Alloy With External Diameter Φ 18 mm
Product Description:
Aluminium alloys are one of the most widely used Non-ferrous metal structural materials in industry.The aluminum alloy tube used in heat exchanger mainly produces 3 series aluminum alloy, 1 series aluminum alloy, 6 series aluminum alloy, 5 series aluminum alloy.
Aluminum alloy density is low, but the strength is relatively high, close to or more than high-quality steel, good plasticity, can be processed into a variety of profiles, with excellent electrical conductivity, thermal conductivity and corrosion resistance, widely used in industry, usage is second only to steel.
This product is mainly used for various cooling heat exchange tubes. Widely used in air conditioning, refrigerators, heating and air conditioning equipment.The series of aluminum alloys have good corrosion resistance and weldability.
We use high quality remelted bar, source control quality, large tonnage extruder, high extrusion ratio extruder, hot extrusion cold drawing mode of production, multi-channel product quality inspection to ensure product quality, to provide customers with the best quality products. Product specifications and performance can be customized according to customer requirements. The length of the product can reach 18 meters.
Features:
The processing methods of wrought aluminum and aluminum alloy are different according to the specific requirements. The main processing methods include hot working, cold working, solid solution heat treatment, aging treatment, annealing treatment, etc. .
The first digit after H.
H18 means work hardened to 100% hardness (fully hardened state).
The company can be customized according to customer requirements, product specifications and performance can be customized according to customer requirements.Companies adhering to the hard technology, new materials, more efficient, more security purposes to better serve the major enterprises.
Techical Parameters:
Heat Exchanger Aluminum Tube
The main production specifications are listed as follows:
| Model Number | State | Wall Thickness mm | Tensile Strength MPa | Non-proportional Elongation Strength MPa | Elongation After Break A50mm |
| 1050 1060 1070 1050A | O | ≤20.00 | 60~95 | ≥70 | ≥25.00 |
| H14 | ≤10.00 | 100~135 | ≥70 | ≥5.00 | |
| 3003 3103 3A21 | O | ≤20.00 | 95~130 | ≥35 | ≥25.00 |
| H12 | ≤15.00 | 115~150 | ≥75 | ≥12.00 | |
| H14,H24 | ≤10.00 | 135~165 | ≥110 | ≥6.00 | |
| H28 | ≤3.00 | ≥180 | ≥145 | ≥3.00 |
The specifications in the form can be customized according to customer's requirements.
Applications:
Condensator
Evaporimeter
Air-conditioning
Icebox
Home freezer
Industrial freezer
Cold storage with cold exhaust pipe
Small warm wind
Lipstick shell
Eyebrow pen shell
Air conditioning connection pipe
Car water tank connecting pipe
Car air-conditioning connection pipe
Microchannel heat exchanger connecting tube
etc.
Production Process:
Coil pipe
Raw material procurement-inspection-cleaning-extrusion-coiling-heat treatment-flaw detection -forming-inspection-finished product packaging
Stright pipe
Raw material procurement-inspection-cleaning-extrusion-coiling-straightening-flaw detection-fine cutting-cleaning-heat treatment-inspection-finished product packaging
Support and Services:
We support and provide technical services for the use of aluminum pipes and assist customers to solve the production problems arising during the actual use process. Including the performance detection of aluminum pipe, technical analysis, the use of the back channel, aluminum pipe welding, aluminum pipe pipe, aluminum pipe bending, finished product leakage detection, etc., at the same time in the use of related problems, we will also assist customers to solve problems in the first time. And make corresponding adjustments according to the actual situation.
FAQ.:
Q1: What kind of material alloy is the product?
A1: Currently, there are 1 series, 3 series, and 6 series aluminum alloy.
Q2: What state and performance of the aluminum pipe can be produced?
A2: can produce from hard state to soft state and interval performance products
Q3: Can I customize the product specifications and requirements?
A3: Different specifications and states can be customized according to the requirements, such as fixed ruler straight pipe and coil pipe
Q 4: What is the minimum starting order volume?
A 4: The minimum order volume is 3 tons.
