Anti Corrosion 20mm Aluminium Round Tube Extruded Aluminum Tubing H12 Φ25
| Place of Origin | Changzhou China |
|---|---|
| Brand Name | Yun Neng |
| Certification | ISO9001 ISO14001 ISO45001 |
| Model Number | 1050A |
| Minimum Order Quantity | 3 tons |
| Price | negotiation |
| Packaging Details | Standard export packaging |
| Delivery Time | 30 working days after received your down payment |
| Payment Terms | T/T |
| Supply Ability | 50,000 mt per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Air-conditioner, Refrigerator, Power Plant Water Cooling Tower | State | H12 |
|---|---|---|---|
| Outside Diameter | 25mm Or Customized | Wall Thickness | 1mm Or Customized |
| Size | Customized | Tensile Strength | 100Mpa-135Mpa |
| Product Name | Air-conditioner And Refrigerator Tubes | Shape | Round |
| Length | Customized | Maximum Length | 7464 |
| High Light | Anti Corrosion 20mm Aluminium Round Tube,20mm Aluminium Round Tube H12,Extruded Aluminum Tubing 25mm |
||
Product Description

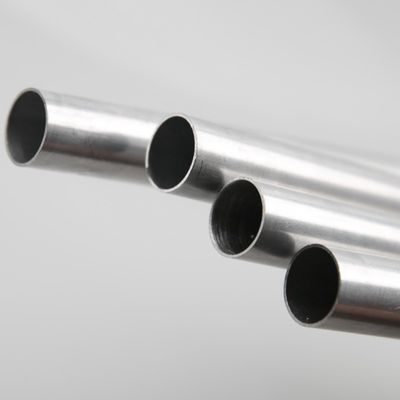

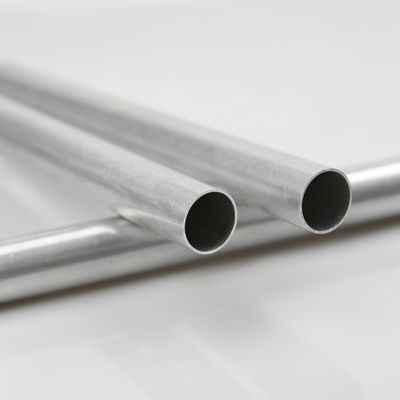

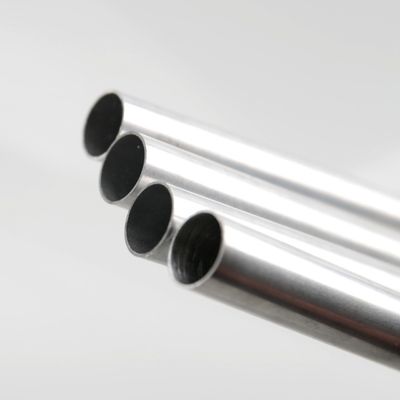

Anti-Corrosion round aluminium tube Extruded Aluminum Tubing H12 Φ25
Product Description:
We provide series 1 of pure aluminum and 3003 anticorrosive aluminum aluminum pipes, which can produce air cooled island tubes (aluminum heat exchange tubes) for thermal equipment with outer diameter of 15mm to 30mm, wall thickness of 0.8mm to 2.0mm, and length of 3m to 15m. Or according to customer needs to customize non-standard specifications of heat exchange equipment aluminum pipe. The product is made of aluminum alloy with silver in appearance. The final status of the product is: straight tube. The internal and external surface of our aluminum pipe for passivation and anti-corrosion treatment, add anti-corrosion coating on the internal and external surface, with excellent corrosion resistance, can be suitable for the use of various media, such as: water, antifreeze, suitable for the use of large heat exchange equipment. Our products are manufactured to the highest standards to ensure excellent performance.
Can be produced according to customer requirements flat plate collector runner tube assembly, including product bending, flaring, welding and other production processes, the use of special welding technology and special for special anticorrosive aluminum alloy flux welding with the flux, the product weld yield is higher, the leakage rate is lower, more reliable. Solve the market welding technology difficulties. The overall performance of the product is equal to the copper pipe. And more cost-effective.
Features:

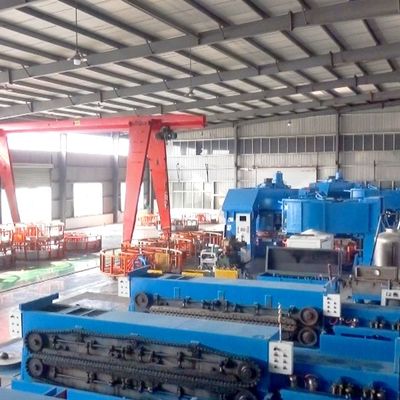

Using high-quality remelted aluminum rods, from the raw material control of quality, the use of large-tonnage extruder, hot extrusion and cold drawing production methods, the product of high densities, high heat transfer performance, high corrosion resistance, small tolerance range. Better quality, tensile strength 100Mpa-135Mpa, non-proportional elongation strength ≥ 80Mpa, elongation after break A50mm ≥ 5%. Can meet the needs of customers flaring and expanding the tube after the use of the road. Product specifications and performance can be customized according to customer requirements. (Product length can be 18 meters)
Technical Parameters:
|
(Main Size)
Model Number |
State |
Outside Diameter /mm |
Wall Thickness /mm |
Length /m |
Tensile Strength /MPa | Non-proportional Elongation Strength /MPa | Elongation After Break A50/mm | ||
| Main Size | |||||||||
| Series 1 | 1050 1060 1070 1050A | O |
20-32
|
0.8-2.0 |
5-15 |
≤20.00 | 60~95 | ≥70 | ≥25.00 |
| H14 | ≤10.00 | 100~135 | ≥70 | ≥5.00 | |||||
| Series 3 | 3003 3103 3A21 | O | ≤20.00 | 95~130 | ≥35 | ≥25.00 | |||
| H12 | ≤15.00 | 115~150 | ≥75 | ≥12.00 | |||||
| H14,H24 | ≤10.00 | 135~165 | ≥110 | ≥6.00 | |||||
| H28 | ≤3.00 | ≥180 | ≥145 | ≥3.00 | |||||
Air-cooled Island Tube
1050A
|
Model Name |
Model Number |
Outside Diameter /mm |
Wall Thickness/mm |
Maximum Length/m |
Length/mm | Tensile Strength /MPa |
Non- proportional Elongation Strength /MPa |
Elongation After Break A50/mm |
| Main Size |
Series 1, Series 3 |
20-32 | 0.8-2.0 | 5000-15000 | ||||
| Example | 1050A | 28 | 1.0 | 18 | 7969 |
100~135
|
≥80 | ≥5.00 |
| 25 | 0.9 | 6959 | ||||||
| 23 | 1.5 | 9365 | ||||||
| 32 | 1.3 | 12266 |
Application:
power plant water cooling tower
surface condenser
Large heat exchange equipment
condensator
evaporimeter
etc.
Support and Services:
The technical support and services for Air-conditioner and refrigerator tubes include:
- Provide timely and accurate advice on product installation and maintenance
- Provide technical support and solutions for repair and maintenance
- Provide after-sales service and maintenance for all products
- Provide professional advice and timely response to customer inquiries
- Provide product training and technical advisory services
FAQ:
Q1: What kind of material alloy is the product?
A1: At present, it can produce 1 series industrial aluminum alloy, 3003 and 3103 aluminum manganese alloy, and 6 series aluminum alloy.
Q2: What state and performance of the aluminum pipe can be produced?
A2: can produce from hard state to soft state and interval performance products
Q3: Can I customize the product specifications and requirements?
A3: Different materials and products with different requirements can be customized according to the requirements
Q 4: What is the minimum starting order volume?
A 4: The minimum order volume is 3 tons.
