H12 Customized 10mm Aluminium Tube Thick Wall Φ16mm Solar Energy Assembly Products
| Place of Origin | Changzhou China |
|---|---|
| Brand Name | Yun Neng |
| Certification | ISO9001 ISO4001 ISO45001 |
| Model Number | 30588 H12 |
| Minimum Order Quantity | 3 metric tons |
| Price | negotiation |
| Packaging Details | Standard export packaging |
| Delivery Time | 30 working days after received your down payment |
| Payment Terms | T/T |
| Supply Ability | 50,000 mt per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| State | H12 | Outside Diameter/mm | 16 Or Customized |
|---|---|---|---|
| Thickness/mm | 1.25 Or Customized | Tensile Strength/Mpa | 115-150 |
| Yield Strength /Mpa | ≥75 | Elongation | ＞12% |
| Treatment | Special Anti-corrosion | Packing | Standard Export Packing |
| High Light | H12 10mm Aluminium Tube,10mm Aluminium Tube 16mm Wall,16mm aluminium tube For Solar Energy |
||
Product Description

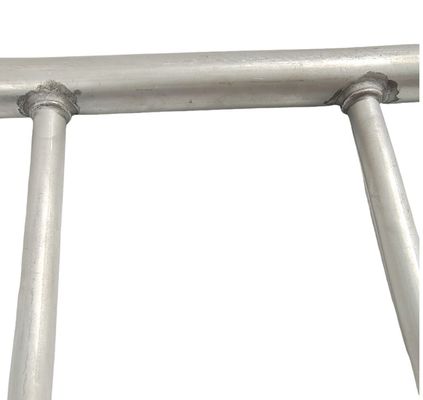

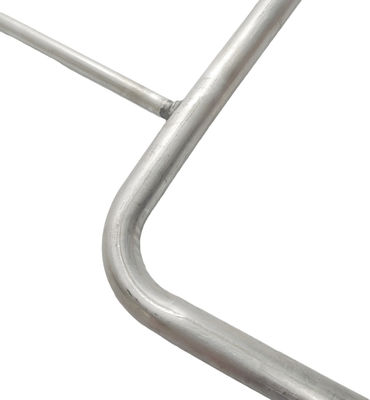

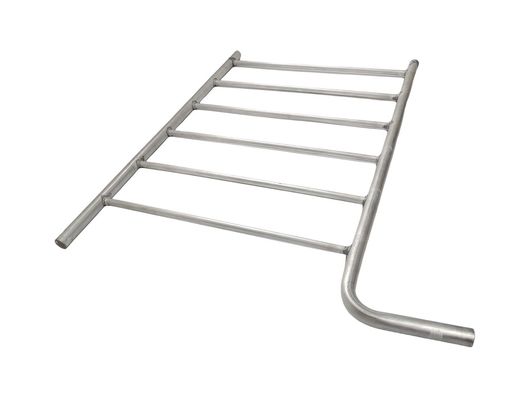

Solar Energy Assembly Products H12 Customized Thick Wall Aluminium Tube Φ16mm
Product Description:
Better heat transfer, better anticorrosion resistance, better cost performance, better heat resistance, better service life
The high efficiency corrosion-resistant aluminum alloy independently developed by our company has been widely used in the flat plate collector, and the use performance is equal to the quality and copper pipe, and the cost is more optimized. Solve the corrosion problems and welding problems, to ensure the product accuracy and quality. Plate collector aluminum pipe assembly products can be provided according to customer demand.
Applications:
Flat-panel solar energy collector
solar collector
heat exchanger
Solar tube
Vacuum solar tube
Wall-mounted flat plate collector
Large solar energy collector
Techical Parameters:
Aluminum Alloy Assembly
| Product Name |
Model Number (Material) |
StateO | Salt Spray Corrosion Test >1500 hours Pressure Resistance ＞15 Mpa | ||||||
| Outside Diameter/mm | Thickness/mm | Tensile Strength/Mpa | Yield Strength /Mpa | Elongation | Length/mm | Shape | |||
|
Main Size Example |
30588 | H14 | 7-30 | 0.7-2.0 | 130-165 | ≥110 | ≥5% |
Customized
|
Coil |
| H12 | 115-150 | ≥75 | ＞12% | ||||||
| O | 95-130 | ＞60 | ≥30% | ||||||
| Assembly |
H14, H12, O |
19 |
1-1.7
|
Customized | |||||
| 20 | |||||||||
| 22 | |||||||||
Can meet the needs of customers flaring and expanding the tube after the use of the road. Product specifications and performance can be customized according to customer requirements.
Support and Services:
Our team has professional technology and rich experience in production application, and we can provide technical support for the use of aluminum pipes to help customers solve technical production problems in the actual production application. Increase capacity.
We will make regular return visits to product use, listen to customer feedback in the first time, and make corresponding adjustments according to the actual situation.
Ensure sincere cooperation and common long-term development.
FAQ:
Q1: What kind of material alloy is the product?
A1: The product is made of our unique high-performance anti-corrosion aluminum alloy, whose performance is equal to the performance of the solar tube of Hyde Lu Aluminum industry.
Q2: What state and performance of the aluminum pipe can be produced?
A2: can produce from hard state to soft state and interval performance products
Q3: Can I customize the product specifications and requirements?
A3: Different specifications and states can be customized according to the requirements, such as fixed ruler straight pipe and coil pipe
Q 4: What is the minimum starting order volume?
A 4: The minimum order volume is 3 tons.
