1070 10mm Aluminium Tube Fluid To Fluid Heat Exchanger Tubing 1070 Aluminum Alloy Pipe
| Place of Origin | Changzhou China |
|---|---|
| Brand Name | Yun Neng |
| Certification | ISO9001 ISO14001 ISO45001 |
| Model Number | 1070 |
| Minimum Order Quantity | 3 tons |
| Price | negotiation |
| Packaging Details | Standard export packaging |
| Delivery Time | 30 working days after received your down payment |
| Payment Terms | T/T |
| Supply Ability | 50,000 mt per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model Number | 1070 | Material | Aluminum Or Aluminum Alloy |
|---|---|---|---|
| State | H14 | Application | Heat Exchange Equipment，Air-conditioner, Refrigerator |
| Tensile Strength | 100Mpa-135Mpa | Non-proportional Elongation Strength MPa | ≥70 |
| Elongation After Break A50mm | ≥5.00 | Outside Diameter/mm | ≤10.00 |
| Thickness/mm | 0.3-2.0 | Length | Customized |
| Shape | Coil | Specification | Refer To National Stamdars Or Customer Requirements |
| High Light | 1070 10mm Aluminium Tube,H14 ISO9001 10mm Aluminium Tube,H14 fluid heat exchanger |
||
Product Description

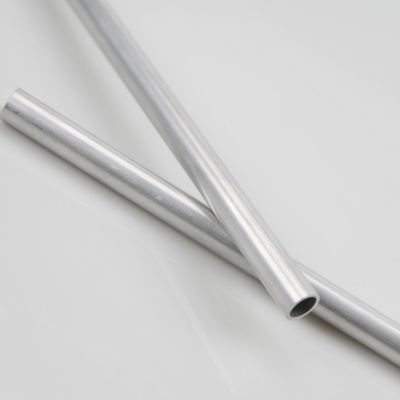

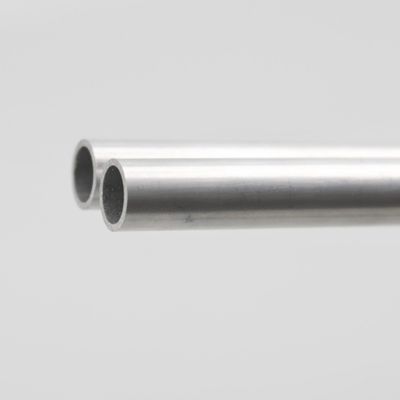

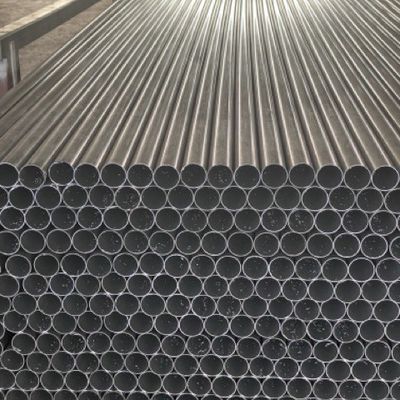

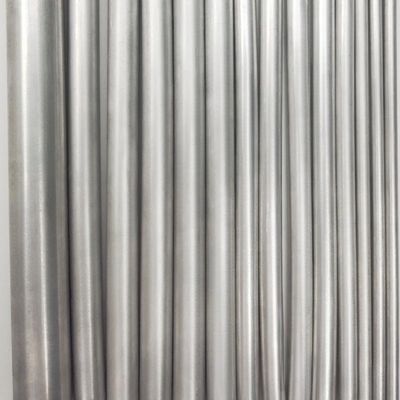

Fluid To Fluid Heat Exchanger Tubing 1070 Aluminum Alloy Pipe Φ10mm
Product Description:
Aluminum tube for heat exchanger, mainly producing 3 series aluminum alloy, 1 series aluminum alloy, 6 series aluminum alloy, 5 series aluminum alloy.
It is mainly used in the exchange tubes of various refrigeration and heat exchange equipment. It is widely used in air conditioning, refrigerator, warm air and other equipment. The product can provide different state specifications of the ruler straight pipe and coil pipe. The products produced by our company are produced by large extruder, with advanced production technology and special heat treatment technology, strict control of multiple processes, high precision, low leakage rate and excellent quality. And the material-induced density is high. Meet the processing requirements of the rear road use.
Features:
The company has a full set of aluminum pipe production equipment, and a full set of aluminum pipe testing, strict control of the production process, to ensure that the product quality and mechanical properties are better, higher precision, smaller tolerance range. Can be controlled in the ± 0.02mm range.
Techical Parameters:
Heat Exchanger Aluminum Tube
The main production specifications are listed as follows:
| Model Number | State | Wall Thickness mm | Tensile Strength MPa | Non-proportional Elongation Strength MPa | Elongation After Break A50mm |
| 1050 1060 1070 1050A | O | ≤20.00 | 60~95 | ≥70 | ≥25.00 |
| H14 | ≤10.00 | 100~135 | ≥70 | ≥5.00 | |
| 3003 3103 3A21 | O | ≤20.00 | 95~130 | ≥35 | ≥25.00 |
| H12 | ≤15.00 | 115~150 | ≥75 | ≥12.00 | |
| H14,H24 | ≤10.00 | 135~165 | ≥110 | ≥6.00 | |
| H28 | ≤3.00 | ≥180 | ≥145 | ≥3.00 |
Specifications can be customized according to customer requirements.
Applications:
Condensator
Evaporimeter
Air-conditioning
Icebox
Home freezer
Industrial freezer
Cold storage with cold exhaust pipe
Small warm wind
Lipstick shell
Eyebrow pen shell
Air conditioning connection pipe
Car water tank connecting pipe
Car air-conditioning connection pipe
Microchannel heat exchanger connecting tube
etc.
Production Process:
Coil pipe
Raw material procurement-inspection-cleaning-extrusion-coiling-heat treatment-flaw detection -forming-inspection-finished product packaging
Stright pipe
Raw material procurement-inspection-cleaning-extrusion-coiling-straightening-flaw detection-fine cutting-cleaning-heat treatment-inspection-finished product packaging
Support and Services:
We support and provide technical services for the use of aluminum pipes and assist customers to solve the production problems arising during the actual use process. Including the performance detection of aluminum pipe, technical analysis, the use of the back channel, aluminum pipe welding, aluminum pipe pipe, aluminum pipe bending, finished product leakage detection, etc., at the same time in the use of related problems, we will also assist customers to solve problems in the first time. And make corresponding adjustments according to the actual situation.
FAQ.:
Q1: What kind of material alloy is the product?
A1: Currently, there are 1 series, 3 series, and 6 series aluminum alloy.
Q2: What state and performance of the aluminum pipe can be produced?
A2: can produce from hard state to soft state and interval performance products
Q3: Can I customize the product specifications and requirements?
A3: Different specifications and states can be customized according to the requirements, such as fixed ruler straight pipe and coil pipe
Q 4: What is the minimum starting order volume?
A 4: The minimum order volume is 3 tons.
