Salt Spray Corrosion Test Solar Energy Collector Calandria O Φ7-30mm
| Place of Origin | Changzhou China |
|---|---|
| Brand Name | Yun Neng |
| Certification | ISO9001 ISO14001 ISO45001 |
| Model Number | 30588 |
| Minimum Order Quantity | 3 tons |
| Price | negotiation |
| Packaging Details | Standard export packaging |
| Delivery Time | 30 working days after received your down payment |
| Payment Terms | T/T |
| Supply Ability | 50,000 mt per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Aluminum Alloy Calandria | Outside Diameter | 7-30mm Or Customized |
|---|---|---|---|
| Wall Thickness | 0.8-1.2mm Or Customized | Salt Spray Corrosion Test | > 1500 Hours |
| Yield Strength /Mpa | ＞60 | Elongation After Break A50mm | ≥ 30% |
| Tensile Strength/Mpa | 95-130 | State | O |
| Shape | Coil | ||
| High Light | 30 mm aluminium tube 95Mpa,30 mm aluminium tube 130Mpa,calandria tube 7MM |
||
Product Description

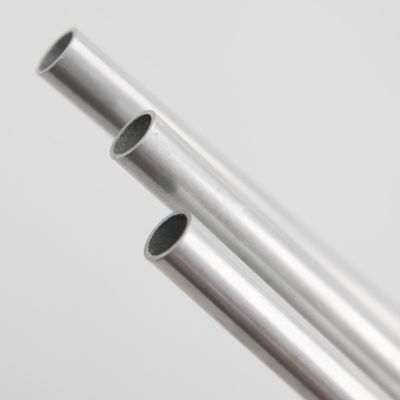

Salt Spray Corrosion Test Solar Energy Collector Calandria O Φ7-30mm
Product Description:
Flat plate collectors have clear advantages over all-glass vacuum tube collectors in terms of system life, system maintenance, and other factors in the engineering of solar energy systems, split solar water hWhen compared to other solar collectors, flat plate collectors have a number of advantages:
(1) They are best suited for pressurized systems;
(2) They are best suited for double-cycle solar eaters, and solar energy and building integration needs of the location.water heaters;
(3) They are best suited for the implementation of solar water heaters integrated with buildings;
(4) They have a long system life and require little maintenance;
(5) They can be used in solar heating systems to solve the system overheating issue more quickly.
Features:
Improved heat transmission, improved anticorrosion resistance, improved cost effectiveness, improved heat resistance, and improved service life.
The flat plate collector has been extensively used the high efficiency corrosion-resistant aluminum alloy that our firm independently created. The use performance is equal to the quality and copper pipe, and the cost is more optimized. To assure product accuracy and quality, address welding and corrosion issues. Products for plate collector aluminum pipe assemblies can be offered in response to customer need.
Applications:
Flat-panel solar energy collector
solar collector
heat exchanger
Solar tube
Vacuum solar tube
Wall-mounted flat plate collector
Large solar energy collector
etc.
Technical Parameters:
Aluminum Alloy Calandria
| Product Name |
Model Number (Material) |
StateO | Salt Spray Corrosion Test >1500 hours Pressure Resistance ＞15 Mpa | ||||||
| Outside Diameter/mm | Thickness/mm | Tensile Strength/Mpa | Yield Strength /Mpa | Elongation | Length/mm | Shape | |||
|
Main Size Example |
30588 | H14 | 7-30 | 0.7-2.0 | 130-165 | ≥110 | ≥5% |
Customized
|
Coil |
| H12 | 115-150 | ≥75 | ＞12% | ||||||
| O | 95-130 | ＞60 | ≥30% | ||||||
| Calandria |
H14, H12, O |
10 |
0.8-1.2
|
Customized | |||||
| 8 | |||||||||
| 12 | |||||||||
| Can customize the production of a variety of specifications of the collector tubes. | |||||||||
Support and Services:
To satisfy the customer's requirements for welding, mouth opening, hole drawing, and rear channel bending. The business has specialized welding equipment and solder that can help consumers with welding-related technical issues. Customize different ruler straight pipe and coil characteristics in accordance with customer needs. Strict controls are placed on the production process. Ensure the caliber of the output.
In accordance with the needs of the customer, we can also provide the complete line of solar aluminum pipe assembly goods.
FAQ:
Q1: What kind of material alloy is the product?
A1: The product is made of our unique high-performance anti-corrosion aluminum alloy, whose performance is equal to the performance of the solar tube of Hyde Lu Aluminum industry.
Q2: What state and performance of the aluminum pipe can be produced?
A2: can produce from hard state to soft state and interval performance products
Q3: Can I customize the product specifications and requirements?
A3: Different specifications and states can be customized according to the requirements, such as fixed ruler straight pipe and coil pipe
Q 4: What is the minimum starting order volume?
A 4: The minimum order volume is 3 tons.
