Salt Spray Corrosion Test Solar Energy Collector Calandria H12 8mm Aluminum Tube
| Place of Origin | Changzhou China |
|---|---|
| Brand Name | Yun Neng |
| Certification | ISO9001 ISO14001 ISO45001 |
| Model Number | 30588 |
| Minimum Order Quantity | 3 tons |
| Price | negotiation |
| Packaging Details | Standard export packaging |
| Delivery Time | 30 working days after received your down payment |
| Payment Terms | T/T |
| Supply Ability | 50,000 mt per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Aluminum Alloy Calandria | Outside Diameter | 8mm Or Customized |
|---|---|---|---|
| Wall Thickness | 1.2mm Or Customized | Salt Spray Corrosion Test | > 1500 Hours |
| Yield Strength /Mpa | ≥75 | Elongation After Break A50mm | ＞12% |
| Tensile Strength/Mpa | 115-150 | State | H12 |
| Shape | Coil | ||
| High Light | H12 10 mm aluminium tube,10 mm aluminium tube H12,8mm aluminum tube |
||
Product Description

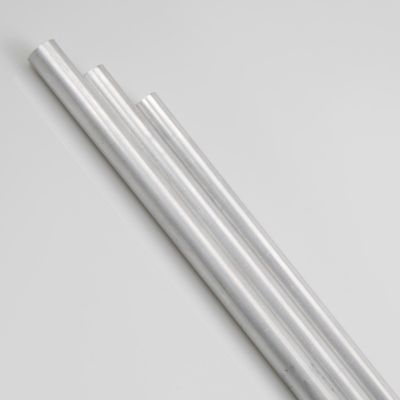

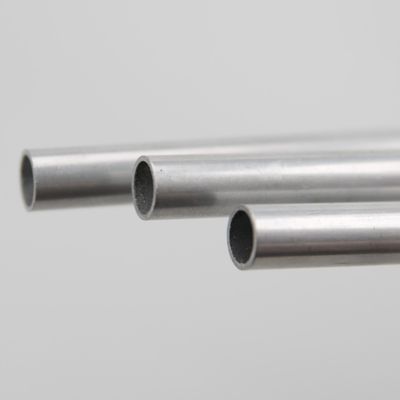

Salt Spray Corrosion Test Solar Energy Collector Calandria H12 Φ8mm
Product Description:
Flat plate solar collectors have several characteristics compared with other solar collectors:
(1) Flat plate collectors are most suitable for pressurized systems; (2) Most suitable for double-cycle solar water heaters; (3) Most conducive to the realization of solar water heaters combined with buildings;
(4) Long system life and low maintenance cost;
(5) Flat plate collector used in solar heating system can be more convenient to solve the system overheating problem in non-heating season.
Therefore, in the solar energy system engineering, split solar water heater and solar energy and building integration requirements of the place, flat plate collector than all-glass vacuum tube collector in the system life, system maintenance and other aspects have obvious advantages.
Features:
Better heat transfer, better anticorrosion resistance, better cost performance, better heat resistance, better service life
The high efficiency corrosion-resistant aluminum alloy independently developed by our company has been widely used in the flat plate collector, and the use performance is equal to the quality and copper pipe, and the cost is more optimized. Solve the corrosion problems and welding problems, to ensure the product accuracy and quality. Plate collector aluminum pipe assembly products can be provided according to customer demand.
Applications:
Flat-panel solar energy collector
solar collector
heat exchanger
Solar tube
Vacuum solar tube
Wall-mounted flat plate collector
Large solar energy collector
Technical Parameters:
Aluminum Alloy Calandria
| Product Name |
Model Number (Material) |
StateO | Salt Spray Corrosion Test >1500 hours Pressure Resistance ＞15 Mpa | ||||||
| Outside Diameter/mm | Thickness/mm | Tensile Strength/Mpa | Yield Strength /Mpa | Elongation | Length/mm | Shape | |||
|
Main Size Example |
30588 | H14 | 7-30 | 0.7-2.0 | 130-165 | ≥110 | ≥5% |
Customized
|
Coil |
| H12 | 115-150 | ≥75 | ＞12% | ||||||
| O | 95-130 | ＞60 | ≥30% | ||||||
| Calandria |
H14, H12, O |
10 |
0.8-1.2
|
Customized | |||||
| 8 | |||||||||
| 12 | |||||||||
|
Can customize the production of a variety of specifications of the collector tubes. |
|||||||||
Support and Services:
To meet the customer's rear channel bending, mouth opening, hole drawing, welding and other use needs. The company has special welding technology and solder, which can assist customers to solve welding technical problems. According to customer needs to customize various specifications of the ruler straight pipe and coil. Production process are strictly controlled. Ensure the product quality.
We can also provide the overall solar aluminum pipe assembly products according to the customer's needs.
FAQ:
Q1: What kind of material alloy is the product?
A1: The product is made of our unique high-performance anti-corrosion aluminum alloy, whose performance is equal to the performance of the solar tube of Hyde Lu Aluminum industry.
Q2: What state and performance of the aluminum pipe can be produced?
A2: can produce from hard state to soft state and interval performance products
Q3: Can I customize the product specifications and requirements?
A3: Different specifications and states can be customized according to the requirements, such as fixed ruler straight pipe and coil pipe
Q 4: What is the minimum starting order volume?
A 4: The minimum order volume is 3 tons.
