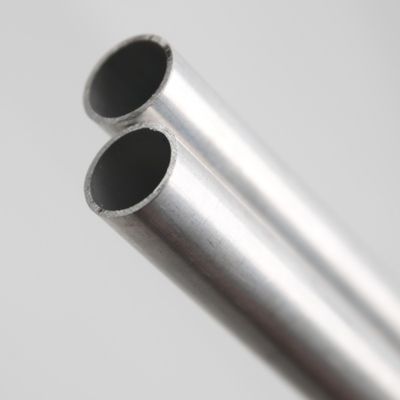

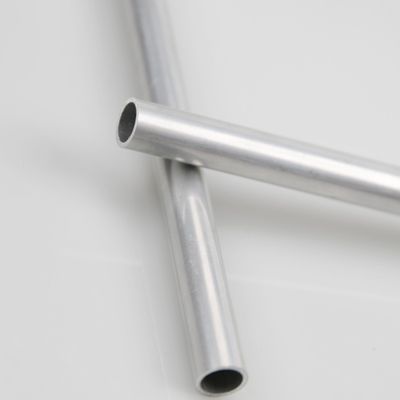

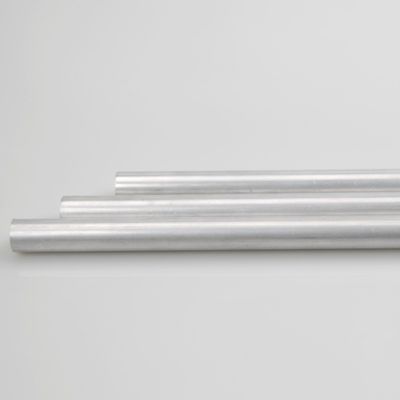

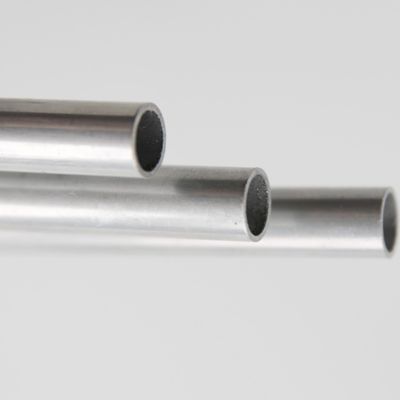

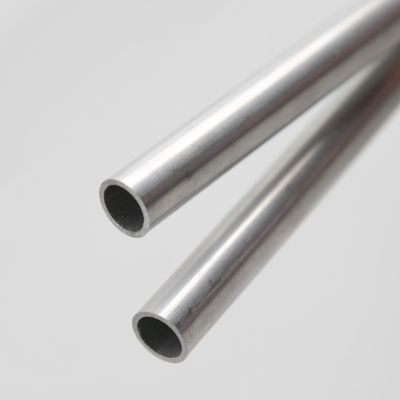

Salt Spray Corrosion 10mm Aluminium Tube Test Solar Energy Collector Calandria 95 To 130mpa
| Place of Origin | Changzhou China |
|---|---|
| Brand Name | Yun Neng |
| Certification | ISO9001 ISO14001 ISO45001 |
| Model Number | 30588 |
| Minimum Order Quantity | 3 tons |
| Price | negotiation |
| Packaging Details | Standard export packaging |
| Delivery Time | 30 working days after received your down payment |
| Payment Terms | T/T |
| Supply Ability | 50,000 mt per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Aluminum Alloy Calandria | Outside Diameter | 10mm Or Customized |
|---|---|---|---|
| Wall Thickness | 0.7-2.0mm Or Customized | Salt Spray Corrosion Test | > 1500 Hours |
| Yield Strength /Mpa | ＞60 | Elongation After Break A50mm | ≥ 30% |
| Tensile Strength/Mpa | 95-130 | State | O |
| Shape | Coil | ||
| High Light | 10mm Aluminium Tube 95mpa,10mm Aluminium Tube 130mpa,Solar Energy Collector Tube 2mm |
||
Product Description
Salt Spray Corrosion Test Solar Energy Collector Calandria O D10
Product Description:
Flat plate collectors have clear advantages over all-glass vacuum tube collectors in terms of system life, system maintenance, and other factors in the engineering of solar energy systems, split solar water hWhen compared to other solar collectors, flat plate collectors have a number of advantages:
(1) They are best suited for pressurized systems;
(2) They are best suited for double-cycle solar eaters, and solar energy and building integration needs of the location.water heaters;
(3) They are best suited for the implementation of solar water heaters integrated with buildings;
(4) They have a long system life and require little maintenance;
(5) They can be used in solar heating systems to solve the system overheating issue more quickly.
Features:
Improved heat transmission, improved anticorrosion resistance, improved cost effectiveness, improved heat resistance, and improved service life.
The flat plate collector has been extensively used the high efficiency corrosion-resistant aluminum alloy that our firm independently created. The use performance is equal to the quality and copper pipe, and the cost is more optimized. To assure product accuracy and quality, address welding and corrosion issues. Products for plate collector aluminum pipe assemblies can be offered in response to customer need.
Applications:
Flat-panel solar energy collector
solar collector
heat exchanger
Solar tube
Vacuum solar tube
Wall-mounted flat plate collector
Large solar energy collector
etc.
Technical Parameters:
Aluminum Alloy Calandria
| Product Name |
Model Number (Material) |
StateO | Salt Spray Corrosion Test >1500 hours Pressure Resistance ＞15 Mpa | ||||||
| Outside Diameter/mm | Thickness/mm | Tensile Strength/Mpa | Yield Strength /Mpa | Elongation | Length/mm | Shape | |||
|
Main Size Example |
30588 | H14 | 7-30 | 0.7-2.0 | 130-165 | ≥110 | ≥5% |
Customized
|
Coil |
| H12 | 115-150 | ≥75 | ＞12% | ||||||
| O | 95-130 | ＞60 | ≥30% | ||||||
| Calandria |
H14, H12, O |
10 |
0.8-1.2
|
Customized | |||||
| 8 | |||||||||
| 12 | |||||||||
|
Can customize the production of a variety of specifications of the collector tubes.
|
|||||||||
Support and Services:
We can offer technical support for the usage of aluminum pipes to assist customers in resolving technical production issues in the real production application thanks to the expert technology and extensive production application experience of our team. Expand the capacity.
We will regularly check in on how the product is being used, hear firsthand from customers, and make the necessary improvements in light of the current circumstances.
Assure true collaboration and shared long-term growth.
FAQ:
Q1: What kind of alloy is the product made of?
A1: The product is made of a special high-performance anti-corrosion aluminum alloy that we developed, and whose performance is on par with that of the solar tubes produced by the Hyde Lu Aluminum Company.
What type of aluminum pipe state and performance is possible?
A2: is capable of producing goods with varying softness and hardness.
Q3: Can I alter the parameters and specs for the product?
A3: Depending on the needs, various specifications and states, such as fixed ruler straight pipe and coil pipe, can be customized.
What is the starting order volume minimum?
A 4: Three tons are the minimum order volume.
