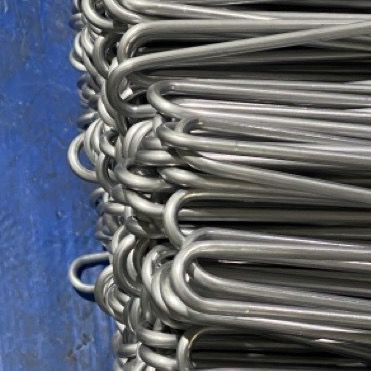

U Tube Heat Exchanger 10mm Aluminium Tube Air To Water Heat Exchanger Tubing 3103 H12 Φ15mm
| Place of Origin | Changzhou China |
|---|---|
| Brand Name | Yun Neng |
| Certification | ISO9001 ISO14001 ISO45001 |
| Model Number | 3103 |
| Minimum Order Quantity | 3 tons |
| Price | negotiation |
| Packaging Details | Standard export packaging |
| Delivery Time | 30 working days after received your down payment |
| Payment Terms | T/T |
| Supply Ability | 50,000 mt per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model Number | 3103 | Material | Aluminum Or Aluminum Alloy |
|---|---|---|---|
| State | H12 | Application | Heat Exchange Equipment，Air-conditioner, Refrigerator |
| Tensile Strength | 115Mpa-150Mpa | Non-proportional Elongation Strength MPa | ≥75 |
| Elongation After Break A50mm | ≥12.00 | Outside Diameter/mm | 15 |
| Wall Thickness/mm | ≤15.00 | Length | Customized |
| Shape | Coil | Specification | Refer To National Stamdars Or Customer Requirements |
| High Light | U Tube 10mm Aluminium Tube,10mm Aluminium Tube 3103 H12,heat exchanger tubing ISO14001 |
||
Product Description
U Tube Heat Exchanger Air To Water Heat Exchanger Tubing 3103 H12 Φ15mm
Product Description:
Aluminum tube for heat exchangers is primarily produced in the 3 series, 1 series, 6 series, and 5 series aluminum alloys.
It is mostly utilized in the heat exchange tubes of different refrigeration and refrigeration equipment. It is commonly utilized in equipment including air conditioners, refrigerators, and warm air systems. Different state characteristics of the ruler straight pipe and coil pipe can be provided by the product. Our company's goods are made using a big extruder, cutting-edge production technology, specialized heat treatment technology, stringent process control, high precision, low leakage rate, and superior quality. And the density caused by the substance is great. Observe the processing specifications for back road use.
Features:
The company has a complete set of equipment for producing aluminum pipes, a complete set of equipment for testing aluminum pipes, and strict control over the production process to guarantee better product quality and mechanical qualities with higher precision and a smaller tolerance range. Controllable within a 0.02mm range.
1. Good chemical corrosion resistance: Aluminum pipes with smooth inner walls make up the inner layer, which has good corrosion resistance.
2. Excellent sealing: The middle layer of aluminum pipe is aluminum foil, which effectively prevents oxygen, water vapor, and odor from penetrating and ensures the pipe's airtightness.
3. Aluminum piping has a good high temperature resistance and is durable in environments with high temperatures.
4. Convenient construction: Aluminum piping is lightweight, flexible and easy to construct, which can meet the needs of bending and jointing.
Techical Parameters:
Heat Exchanger Aluminum U Tube
The main production specifications are listed as follows:
| Model Number | State | Wall Thickness mm | Tensile Strength MPa | Non-proportional Elongation Strength MPa | Elongation After Break A50mm |
| 1050 1060 1070 1050A | O | ≤20.00 | 60~95 | ≥70 | ≥25.00 |
| H14 | ≤10.00 | 100~135 | ≥70 | ≥5.00 | |
| 3003 3103 3A21 | O | ≤20.00 | 95~130 | ≥35 | ≥25.00 |
| H12 | ≤15.00 | 115~150 | ≥75 | ≥12.00 | |
| H14,H24 | ≤10.00 | 135~165 | ≥110 | ≥6.00 | |
| H28 | ≤3.00 | ≥180 | ≥145 | ≥3.00 |
Specifications can be customized according to customer requirements.
Applications:
Condensator
Evaporimeter
Air-conditioning
Icebox
Home freezer
Industrial freezer
Cold storage with cold exhaust pipe
Small warm wind
Lipstick shell
Eyebrow pen shell
Air conditioning connection pipe
Car water tank connecting pipe
Car air-conditioning connection pipe
Microchannel heat exchanger connecting tube
etc.
Production Process:
Coil pipe
Raw material procurement-
inspection-cleaning-extrusion-coiling-heat treatment-flaw detection -forming-inspection-finished product packaging
Stright pipe
Raw material procurement-inspection-cleaning-extrusion-coiling-straightening-flaw detection-fine cutting-cleaning-heat treatment-inspection-finished product packaging
FAQ.:
Q1: What kind of material alloy is the product?
A1: Currently, there are 1 series, 3 series, and 6 series aluminum alloy.
Q2: What state and performance of the aluminum pipe can be produced?
A2: can produce from hard state to soft state and interval performance products
Q3: Can I customize the product specifications and requirements?
A3: Different specifications and states can be customized according to the requirements, such as fixed ruler straight pipe and coil pipe
Q 4: What is the minimum starting order volume?
A 4: The minimum order volume is 3 tons.
