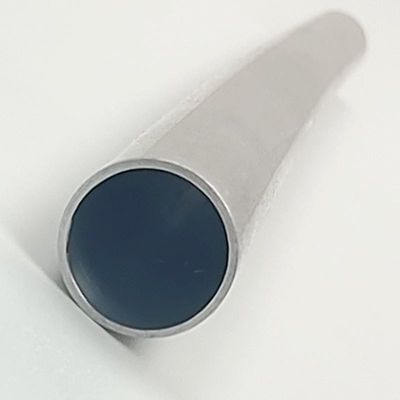

Tube In Tube 30mm Aluminium Round Tube U Tube Heat Exchanger Aluminum Straight Tube 3A21 Φ30mm
| Place of Origin | Changzhou China |
|---|---|
| Brand Name | Yun Neng |
| Certification | ISO9001 ISO14001 ISO45001 |
| Model Number | 3A21 |
| Minimum Order Quantity | 3 tons |
| Price | negotiation |
| Packaging Details | Standard export packaging |
| Delivery Time | 30 working days after received your down payment |
| Payment Terms | T/T |
| Supply Ability | 50,000 mt per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Air-conditioner And Refrigerator Tubes | Application | Heat Exchanger,Air-conditioner, Refrigerator |
|---|---|---|---|
| Shape | Straight Pipe | State | R(H12) |
| Wall Thickness/ Mm | ≤15.00 | Tensile Strength /MPa | 115~150 |
| Non-proportional Elongation Strength /MPa | ≥75 | Elongation After Break A50mm | ≥12.00 |
| Outside Diameter/mm | 6-30 Or Customized | Wall Thickness/mm | 0.6-3.0 Or Customized |
| Size | Customized | Length | Customized |
| High Light | H12 30mm Aluminium Round Tube,30mm Aluminium Round Tube 3A21,H12 Heat Exchanger Tube Customized |
||
Product Description
Tube In Tube Heat Exchanger U Tube Heat Exchanger Aluminum Straight Tube 3A21 Φ30mm
Product Description:
The company has a complete set of equipment for producing aluminum pipes, a complete set of equipment for testing aluminum pipes, and strict control over the production process to guarantee better product quality and mechanical qualities with higher precision and a smaller tolerance range. Controllable within a 0.02mm range.
Cleanliness: To prevent the accumulation of pollutants and dirt that could reduce the effectiveness of heat transfer, condenser tubes must be kept smooth and clean on the inside.The interior wall is smooth, which prevents dirt accumulation and makes it simple to clean and maintain excellent heat conduction efficiency.
The benefits of aluminum over other tube materials include:
Aluminum is a good material option for applications that call for light weight because it is both lightweight and has good thermal conductivity.
Corrosion resistance: The condensing process involves liquids and vapors that may contain corrosive substances, so attention needs to be paid to the corrosion resistance of the piping to ensure long-term stable operation.
Applications:
Condensator
Evaporimeter
Air-conditioning
Icebox
Home freezer
Industrial freezer
Cold storage with cold exhaust pipe
Small warm wind
Lipstick shell
Eyebrow pen shell
Air conditioning connection pipe
Car water tank connecting pipe
Car air-conditioning connection pipe
Microchannel heat exchanger connecting tube
etc.
Support and Services:
The technical support and services include:
- Provide timely and accurate advice on product installation and maintenance
- Provide technical support and solutions for repair and maintenance
- Provide after-sales service and maintenance for all products
- Provide professional advice and timely response to customer inquiries
- Provide product training and technical advisory services
Technical Parameters:
The main production specifications are listed as follows:
Heat Exchanger Aluminum Tube
| Model Number | State | Wall Thickness mm | Tensile Strength MPa | Non-proportional Elongation Strength MPa | Elongation After Break A50mm |
| 1050 1060 1070 1050A | O | ≤20.00 | 60~95 | ≥70 | ≥25.00 |
| H14 | ≤10.00 | 100~135 | ≥70 | ≥5.00 | |
| 3003 3103 3A21 | O | ≤20.00 | 95~130 | ≥35 | ≥25.00 |
| H12 | ≤15.00 | 115~150 | ≥75 | ≥12.00 | |
| H14,H24 | ≤10.00 | 135~165 | ≥110 | ≥6.00 | |
| H28 | ≤3.00 | ≥180 | ≥145 | ≥3.00 |
Specifications can be customized according to customer requirements
FAQ:
Q1: What kind of material alloy is the product?
A1: Currently, there are 1 series, 3 series, and 6 series aluminum alloy.
Q2: What state and performance of the aluminum pipe can be produced?
A2: can produce from hard state to soft state and interval performance products
Q3: Can I customize the product specifications and requirements?
A3: Different specifications and states can be customized according to the requirements, such as fixed ruler straight pipe and coil pipe
Q 4: What is the minimum starting order volume?
A 4: The minimum order volume is 3 tons.
