1050 D30 Aluminum Coil Tubing Power Plant Cooling Water Tower Corrosion Resistant
| Place of Origin | Made in Changzhou, China |
|---|---|
| Brand Name | YUN NENG |
| Certification | ISO9001 ISO14001 ISO45001 |
| Model Number | 1050 |
| Minimum Order Quantity | 3 tons |
| Price | negotiation |
| Packaging Details | Standard export packaging |
| Delivery Time | 30 working days after received your down payment |
| Payment Terms | T/T |
| Supply Ability | 50,000 mt per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Aluminum Coil Tubing | Application | Power Plant Water Cooling Tower, Surface Condenser,Air-conditioner, Refrigerator |
|---|---|---|---|
| Material | Aluminum Or Aluminum Alloy | Color | Silver |
| Tensile Strength /MPa | 100-135 | Non-proportional Elongation Strength | ≥ 80Mpa |
| Elongation After Break | A50mm ≥ 5% | Outside Diameter | 30mm |
| Wall Thickness/mm | 1.5mm | Length | 8000mm |
| Maximum Length | 18 Meters | Specification | According To The National Standards Or According To Customer Special Requirements For Customization |
| High Light | 1050 D30 Aluminum Coil Tubing,Aluminum Coil Tubing Corrosion resistant,1050 aluminum coil 8000mm |
||
Product Description

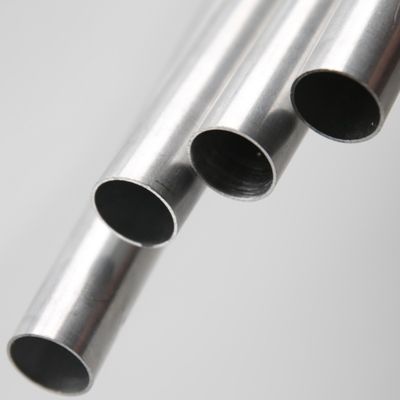

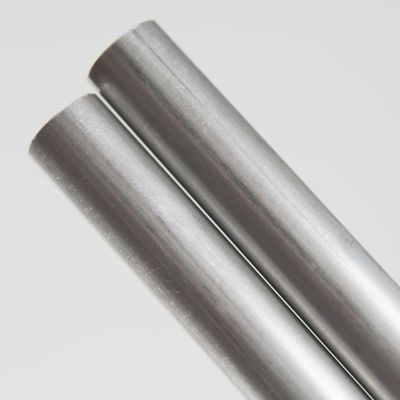

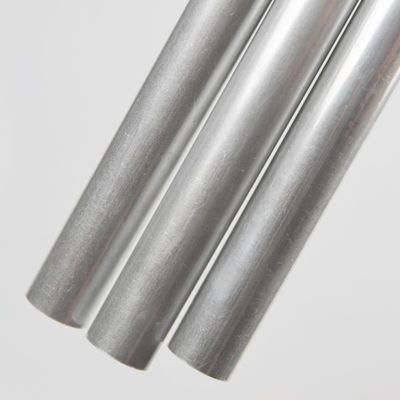

Aluminum 1050 D30 Power Plant Cooling Water Tower Corrosion-resistant Aluminum Coil
Product Description:
1050 series aluminum content of 99.5% . Aluminum has special chemical and physical characteristics, not only light weight and hard texture, but also has good ductility, electrical conductivity, thermal conductivity, heat resistance and nuclear radiation resistance. Our company can produce 15mm ~ 30mm outside diameter, wall thickness 0.8 mm ~ 2.0 mm, length 3M ~ 15m air-cooled island tube (aluminum heat exchanger tube) . At the same time can also be customized according to customer needs of non-standard specifications of heat exchange equipment aluminum tube.
The product is made of aluminum alloy. The final state of the product is: straight tube. We will passivate and anti-corrosion treatment on the inside and outside surfaces of aluminum tubes, adding anti-corrosion coating on the inside and outside surfaces, suitable for large heat exchangers.
Features:
Aluminum and its alloys are characterized by good appearance, light weight, machinability, good physical and mechanical properties, and corrosion resistance, therefore, it is often used to make vehicles, trains, subways, ships, aircraft, rockets, spaceships and other land, sea and air transport tools to reduce the weight and increase the load. The high temperature reducibility of aluminum can be used for melting high melting point metals.
1 series aluminum alloy is also suitable for automotive heat exchange system, power plant cooling industry, automotive water tank, electronic hardware, air-cooled heat exchange industry, optical equipment, fire equipment and other industries. Aluminum has a wide range of applications due to its many excellent properties.
The company is committed to the global refrigeration and heating and new energy fields to provide high-precision high-corrosion aluminum-based new materials and components. The company has advanced automatic production equipment, we have the leading compound molding production line, complete hot extrusion, compound molding, drawing, drawing, heat treatment, straightening cut-off, wound detection and other production equipment and advanced testing equipment. With an annual output of more than 10,000 tons of various specifications of high-performance high-reliability heat exchange aluminum tube production capacity.
Applications:
Power plant water cooling tower
surface condenser
Large heat exchange equipment
condensator
evaporimeter
etc.
Technical Parameters:
Aluminum Coil Tubing
| (Main Size) | State | Outside Diameter /mm | Wall Thickness /mm | Length /m | Tensile Strength /MPa | Non-proportional Elongation Strength /MPa | Elongation After Break A50/mm | ||
| Model Number | |||||||||
| Main Size | |||||||||
| Series 1 | 1050 1060 1070 1050A | O | 20-32 | 0.8-2.0 | 5-15 | ≤20.00 | 60~95 | ≥70 | ≥25.00 |
| H14 | ≤10.00 | 100~135 | ≥70 | ≥5.00 | |||||
| Series 3 | 3003 3103 3A21 | O | ≤20.00 | 95~130 | ≥35 | ≥25.00 | |||
| H12 | ≤15.00 | 115~150 | ≥75 | ≥12.00 | |||||
| H14,H24 | ≤10.00 | 135~165 | ≥110 | ≥6.00 | |||||
| H28 | ≤3.00 | ≥180 | ≥145 | ≥3.00 | |||||
Support and Services:
We can provide technical support and services for the use of aluminum pipes, including technical guidance, production assistance, etc. Our experienced technicians can assist you with any problems your product may encounter. We also provide regular after-sales service to ensure that your products are always run at the highest efficiency. We are proud of our work and strive to provide the best customer service.
If you have any questions or concerns about the product or your use, please feel free to contact us. We will always give you the answers you need.
FAQ:
Q1: What kind of material alloy is the product?
A1: At present, it can produce 1 series industrial aluminum alloy, 3003 and 3103 aluminum manganese alloy, and 6 series aluminum alloy.
Q2: What state and performance of the aluminum pipe can be produced?
A2: can produce from hard state to soft state and interval performance products
Q3: Can I customize the product specifications and requirements?
A3: Different materials and products with different requirements can be customized according to the requirements
Q 4: What is the minimum starting order volume?
A 4: The minimum order volume is 3 tons.
