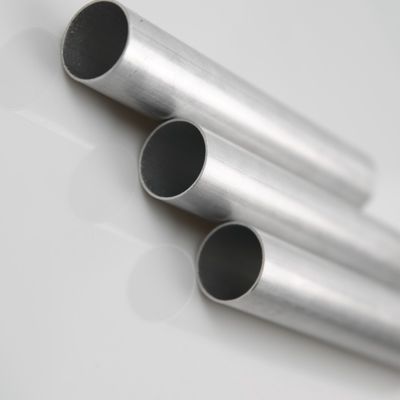

3003 32MM Aluminium Pipe Coil Power Plant Cooling Water Tower Corrosion Resistant
| Place of Origin | Made in Changzhou, China |
|---|---|
| Brand Name | YUN NENG |
| Certification | ISO9001 ISO14001 ISO45001 |
| Model Number | 3003 |
| Minimum Order Quantity | 3 tons |
| Price | negotiation |
| Packaging Details | Standard export packaging |
| Delivery Time | 30 working days after received your down payment |
| Payment Terms | T/T |
| Supply Ability | 50,000 mt per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Aluminum Coil Tubing | Application | Power Plant Water Cooling Tower, Surface Condenser,Air-conditioner, Refrigerator |
|---|---|---|---|
| Material | Aluminum Or Aluminum Alloy | Color | Silver |
| Tensile Strength /MPa | 100-135 | Non-proportional Elongation Strength | ≥ 80Mpa |
| Elongation After Break | A50mm ≥ 5% | Outside Diameter | 32mm |
| Wall Thickness/mm | 1.8mm | Length | 8000mm |
| Maximum Length | 18 Meters | Specification | According To The National Standards Or According To Customer Special Requirements For Customization |
| High Light | 3003 aluminium pipe coil,32MM aluminium pipe coil,water cooling tubes Corrosion resistant ODM |
||
Product Description
3003 Outside Diameter 32 Power Plant Cooling Water Tower Corrosion-resistant Aluminum Coil
Product Description:
3003 aluminum tube is mainly used for low load parts which require high plasticity and good weldability and work in liquid cargo gas medium. 3003 aluminum alloy is mainly composed of aluminum and manganese.
Aluminum has unique chemical and physical properties, not only light and hard, but also has good ductility, conductivity, thermal conductivity, heat resistance and nuclear radiation resistance. The company can customize non-standard heat exchange equipment aluminum tubes according to customer needs.
We will passivate and anti-corrosion treatment on the inside and outside surfaces of aluminum tubes, adding anti-corrosion coating on the inside and outside surfaces, suitable for large-scale heat exchangers.
Features:
3003 is a 3 series aluminum alloy, which is the most widely used antirust aluminum. The strength of this alloy is not high (slightly higher than that of industrial pure aluminum) , and it can not be strengthened by heat treatment, therefore, the cold working method is adopted to improve its mechanical properties: high plasticity in the annealed state, good plasticity in the semi-cold work hardening, low plasticity in the cold work hardening, good corrosion resistance and good weldability, poor machinability.
It is mainly used for low load parts which require high plasticity and good weldability and work in liquid or gas medium. Aluminum alloys are widely used in aircraft, automobiles, trains, ships and other manufacturing industries. In addition, the space rocket, the Space Shuttle, the artificial satellite also uses the massive aluminum and its aluminum alloy.
Aluminum oxide film not only has corrosion resistance, but also has a certain degree of insulation, so aluminum in electrical manufacturing industry, wire and cable industry and radio industry has a wide range of applications.
3003 aluminum alloy ingredients are often used in external packaging, mechanical parts, refrigerators, air conditioning ventilation ducts and other wet environment, the product has a good rust-proof ability.
Applications:
Power plant water cooling tower
surface condenser
Large heat exchange equipment
condensator
evaporimeter
etc.
Technical Parameters:
Aluminum Coil Tubing
| (Main Size) | State | Outside Diameter /mm | Wall Thickness /mm | Length /m | Tensile Strength /MPa | Non-proportional Elongation Strength /MPa | Elongation After Break A50/mm | ||
| Model Number | |||||||||
| Main Size | |||||||||
| Series 1 | 1050 1060 1070 1050A | O | 20-32 | 0.8-2.0 | 5-15 | ≤20.00 | 60~95 | ≥70 | ≥25.00 |
| H14 | ≤10.00 | 100~135 | ≥70 | ≥5.00 | |||||
| Series 3 | 3003 3103 3A21 | O | ≤20.00 | 95~130 | ≥35 | ≥25.00 | |||
| H12 | ≤15.00 | 115~150 | ≥75 | ≥12.00 | |||||
| H14,H24 | ≤10.00 | 135~165 | ≥110 | ≥6.00 | |||||
| H28 | ≤3.00 | ≥180 | ≥145 | ≥3.00 | |||||
Support and Services:
We can provide technical support and services for the use of aluminum pipes, including technical guidance, production assistance, etc. Our experienced technicians can assist you with any problems your product may encounter. We also provide regular after-sales service to ensure that your products are always run at the highest efficiency. We are proud of our work and strive to provide the best customer service.
If you have any questions or concerns about the product or your use, please feel free to contact us. We will always give you the answers you need.
FAQ:
Q1: What kind of material alloy is the product?
A1: At present, it can produce 1 series industrial aluminum alloy, 3003 and 3103 aluminum manganese alloy, and 6 series aluminum alloy.
Q2: What state and performance of the aluminum pipe can be produced?
A2: can produce from hard state to soft state and interval performance products
Q3: Can I customize the product specifications and requirements?
A3: Different materials and products with different requirements can be customized according to the requirements
Q 4: What is the minimum starting order volume?
A 4: The minimum order volume is 3 tons.
