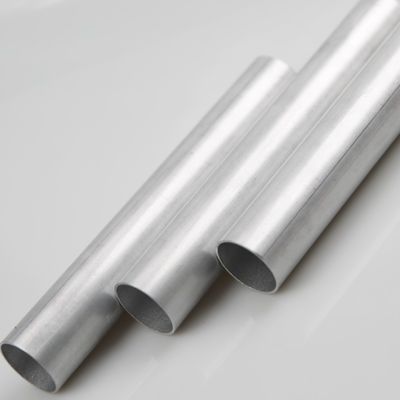

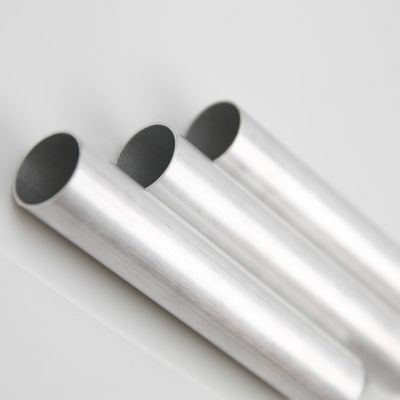

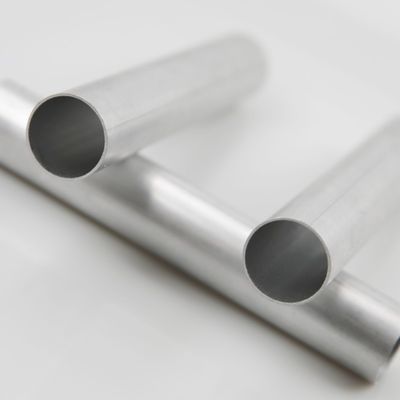

Precision 30mm Aluminium Round Tube For Water Cooling Towers Air Conditioner 1050 D35
| Place of Origin | Changzhou, Jiangsu , China |
|---|---|
| Brand Name | YUN NENG |
| Certification | ISO9001 ISO14001 ISO45001 |
| Model Number | 1050 |
| Minimum Order Quantity | 3 tons |
| Price | negotiation |
| Packaging Details | Standard export packaging |
| Delivery Time | 30 working days after received your down payment |
| Payment Terms | T/T |
| Supply Ability | 50,000 mt per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Length | 8000mm | Application | Air-conditioner, Refrigerator |
|---|---|---|---|
| Outside Diameter | 35mm | Size | Customized |
| Tensile Strength | 100MPa~135MPa | Wall Thickness | 1.6mm |
| Maximum Length | 18m | Non- Proportional Elongation Strength | ≥80MPa |
| Elongation After Break A50 | ≥5.00mm | Specification | According To The National Standards Or According To Customer Special Requirements For Customization |
| High Light | 30mm Aluminium Round Tube 1050,30mm Aluminium Round Tube D35,air conditioner tube 8000mm |
||
Product Description
Precision Aluminium Tubes For Water Cooling Towers Customised Aluminium Tubes 1050 D35
Product Description:
We provide 1 series of pure aluminum and 3 series of corrosion-resistant aluminum tube, can also be customized according to customer needs of non-standard specifications of the heat exchange equipment aluminum tube.
The main processing methods of aluminum alloy are heat treatment, cold treatment, solid solution heat treatment, aging treatment, annealing treatment and so on.
Aluminum alloy is one of the most widely used Non-ferrous metal structural materials in the industry, and has been widely used in the aerospace, automotive, mechanical manufacturing, shipbuilding and chemical industries. Aluminum alloy density is low, but the strength is relatively high, close to or more than high-quality steel, good plasticity, can be processed into a variety of profiles, with excellent electrical conductivity, thermal conductivity and corrosion resistance, widely used in industry.
Features:
We passivate and anti-corrosion treatment on the inner and outer surfaces of aluminum tubes, and add anti-corrosion coating on the inner and outer surfaces, suitable for the use of large-scale heat exchange equipment.
1050 aluminum alloy has good formability and surface treatment, and its corrosion resistance is the best among aluminum alloys. Because it is pure aluminum, its strength is lower, the higher the purity of its strength is lower.
We can provide technical support and services for the use of aluminum pipes, including technical guidance, production assistance, etc. Our experienced technicians can assist you with any problems your product may encounter. We also provide regular after-sales service to ensure that your products are always run at the highest efficiency. We are proud of our work and strive to provide the best customer service.
If you have any questions or concerns about the product or your use, please feel free to contact us. We will always give you the answers you need.
Technical Parameters:
| Main Size) | State | Outside Diameter /mm | Wall Thickness /mm | Length /m | Tensile Strength /MPa | Non-proportional Elongation Strength /MPa | Elongation After Break A50/mm | ||
| Model Number | |||||||||
| Main Size | |||||||||
| Series 1 | 1050 1060 1070 1050A | O | 20-32 | 0.8-2.0 | 5-15 | ≤20.00 | 60~95 | ≥70 | ≥25.00 |
| H14 | ≤10.00 | 100~135 | ≥70 | ≥5.00 | |||||
| Series 3 | 3003 3103 3A21 | O | ≤20.00 | 95~130 | ≥35 | ≥25.00 | |||
| H12 | ≤15.00 | 115~150 | ≥75 | ≥12.00 | |||||
| H14,H24 | ≤10.00 | 135~165 | ≥110 | ≥6.00 | |||||
| H28 | ≤3.00 | ≥180 | ≥145 | ≥3.00 | |||||
1050
| Model Name | Model Number | Outside Diameter /mm | Wall Thickness/mm | Maximum Length/m | Length/mm | Tensile Strength /MPa | Non-proportional Elongation Strength /MPa | Elongation After Break A50/mm |
| Main Size | Series 1 | 20-32 | 0.8-2.0 | 5000-15000 | ||||
| Series 3 | ||||||||
| Example | 1050 | 35 | 1.8 | 18 | 9000 | 100~135 | ≥80 | ≥5.00 |
| 21 | 1.0 | 7000 | ||||||
| 31 | 1.5 | 6000 | ||||||
| 32 | 1.9 | 8000 |
Applications:
power plant water cooling tower
surface condenser
large heat exchange equipment
condensator
evaporimeter
etc.
Support and Services:
The technical support and services for Air-conditioner and refrigerator tubes include:
- Provide timely and accurate advice on product installation and maintenance
- Provide technical support and solutions for repair and maintenance
- Provide after-sales service and maintenance for all products
- Provide professional advice and timely response to customer inquiries
- Provide product training and technical advisory services
FAQ:
Q1: What kind of material alloy is the product?
A1: At present, it can produce 1 series industrial aluminum alloy, 3003 and 3103 aluminum manganese alloy, and 6 series aluminum alloy.
Q2: What state and performance of the aluminum pipe can be produced?
A2: can produce from hard state to soft state and interval performance products
Q3: Can I customize the product specifications and requirements?
A3: Different materials and products with different requirements can be customized according to the requirements
Q 4: What is the minimum starting order volume?
A 4: The minimum order volume is 3 tons.
