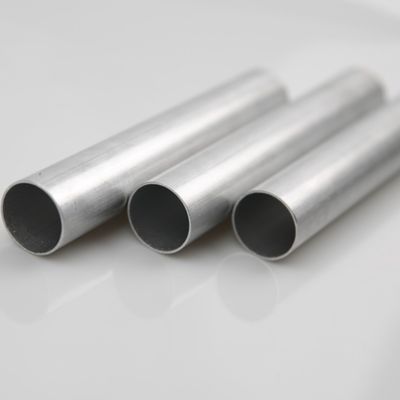

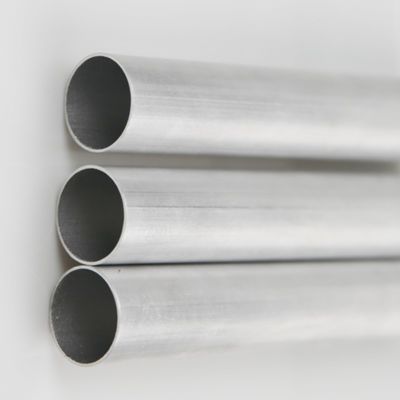

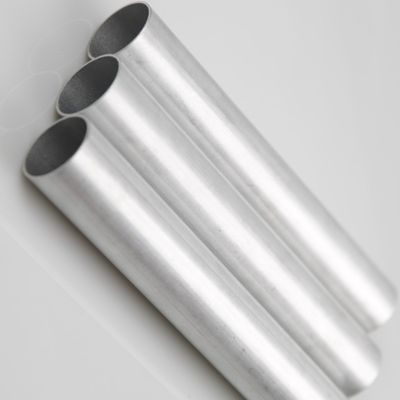

1050 D32 30mm Aluminium Round Tube Customized Water Cooling Tower Precision Corrosion Resistant
| Place of Origin | Changzhou Jiangsu China |
|---|---|
| Brand Name | YUN NENG |
| Certification | ISO9001 ISO14001 ISO45001 |
| Model Number | 1050 |
| Minimum Order Quantity | 3 tons |
| Price | negotiation |
| Packaging Details | Standard export packaging |
| Delivery Time | 30 working days after received your down payment |
| Payment Terms | T/T |
| Supply Ability | 50,000 mt per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Length | 8000mm | Application | Air-conditioner, Refrigerator |
|---|---|---|---|
| Outside Diameter | 32mm | Size | Customized |
| Tensile Strength | 100MPa~135MPa | Wall Thickness | 1.7mm |
| Maximum Length | 18m | Non- Proportional Elongation Strength | ≥80MPa |
| Elongation After Break A50 | ≥5.00mm | Specification | According To The National Standards Or According To Customer Special Requirements For Customization |
| High Light | 1050 D32 30mm Aluminium Round Tube,30mm Aluminium Round Tube Corrosion resistant,Corrosion resistant precision aluminum tubing ISO9001 |
||
Product Description
1050 D32 Can Be Customized Water-cooling Tower Precision Corrosion-resistant Aluminium Tubes
Product Description:
We offer 1 series pure aluminium and 3 series corrosion resistant aluminium tubes, and we can also customize non-standard specifications of aluminium tubes for heat exchanger equipment according to customers' needs.
The main processing methods of aluminium alloy are heat treatment, cold treatment, solution heat treatment, aging treatment and annealing treatment.
Aluminium alloys are one of the most widely used non-ferrous structural materials in the industry and are widely used in the aerospace, automotive, machinery manufacturing, shipbuilding and chemical industries. Aluminium alloys have low density but relatively high strength, approaching or exceeding that of high-quality steel, good plasticity, can be machined into a variety of profiles, have excellent electrical and thermal conductivity and corrosion resistance, and are widely used in industry.
Features:
We passivate and anticorrosive treat the inner and outer surfaces of aluminium tubes and add anticorrosive coatings to the inner and outer surfaces, which are suitable for use in large-scale heat exchange equipment.
1050 Aluminium alloy has good forming properties and surface finish and its corrosion resistance is among the highest of all aluminium alloys. As it is pure aluminium, its strength is lower and higher purities have lower strengths.
We can provide technical support and services for the use of Aluminium Tube, including technical guidance, production assistance and so on. Our experienced technicians can help you solve any problems you may encounter with your products.
Technical Parameters:
| Main Size) | State | Outside Diameter /mm | Wall Thickness /mm | Length /m | Tensile Strength /MPa | Non-proportional Elongation Strength /MPa | Elongation After Break A50/mm | ||
| Model Number | |||||||||
| Main Size | |||||||||
| Series 1 | 1050 1060 1070 1050A | O | 20-32 | 0.8-2.0 | 5-15 | ≤20.00 | 60~95 | ≥70 | ≥25.00 |
| H14 | ≤10.00 | 100~135 | ≥70 | ≥5.00 | |||||
| Series 3 | 3003 3103 3A21 | O | ≤20.00 | 95~130 | ≥35 | ≥25.00 | |||
| H12 | ≤15.00 | 115~150 | ≥75 | ≥12.00 | |||||
| H14,H24 | ≤10.00 | 135~165 | ≥110 | ≥6.00 | |||||
| H28 | ≤3.00 | ≥180 | ≥145 | ≥3.00 | |||||
1050
| Model Name | Model Number | Outside Diameter /mm | Wall Thickness/mm | Maximum Length/m | Length/mm | Tensile Strength /MPa | Non-proportional Elongation Strength /MPa | Elongation After Break A50/mm |
| Main Size | Series 1 | 20-32 | 0.8-2.0 | 5000-15000 | ||||
| Series 3 | ||||||||
| Example | 1050 | 35 | 1.8 | 18 | 9000 | 100~135 | ≥80 | ≥5.00 |
| 21 | 1.0 | 7000 | ||||||
| 31 | 1.5 | 6000 | ||||||
| 32 | 1.9 | 8000 |
Applications:
power plant water cooling tower
surface condenser
large heat exchange equipment
condensator
evaporimeter
etc.
Support and Services:
The technical support and services for Air-conditioner and refrigerator tubes include:
- Provide timely and accurate advice on product installation and maintenance
- Provide technical support and solutions for repair and maintenance
- Provide after-sales service and maintenance for all products
- Provide professional advice and timely response to customer inquiries
- Provide product training and technical advisory services
FAQ:
Q1: What kind of material alloy is the product?
A1: At present, it can produce 1 series industrial aluminum alloy, 3003 and 3103 aluminum manganese alloy, and 6 series aluminum alloy.
Q2: What state and performance of the aluminum pipe can be produced?
A2: can produce from hard state to soft state and interval performance products
Q3: Can I customize the product specifications and requirements?
A3: Different materials and products with different requirements can be customized according to the requirements
Q 4: What is the minimum starting order volume?
A 4: The minimum order volume is 3 tons.
