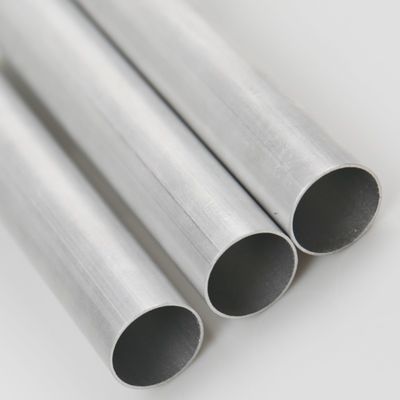

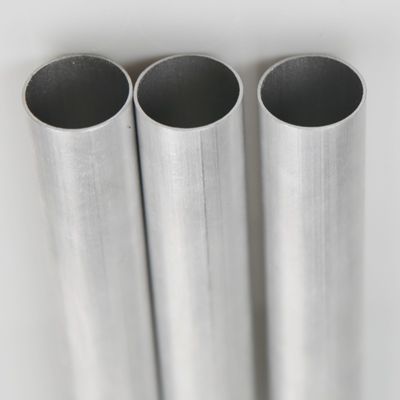

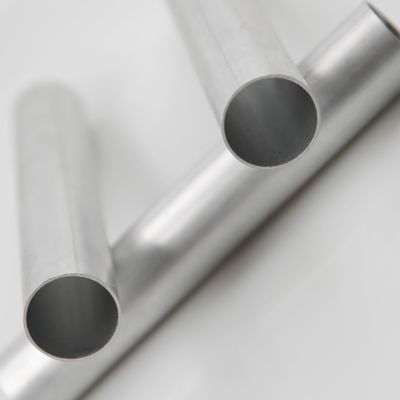

Round H28 3003 Aluminum Tube Corrosion Resistant For Refined Processing
| Place of Origin | Changzhou, China |
|---|---|
| Brand Name | Yun Neng |
| Certification | ISO9001 ISO14001 ISO45001 |
| Model Number | 3003 |
| Minimum Order Quantity | 3 metric tons |
| Price | negotiation |
| Packaging Details | Standard export packaging |
| Delivery Time | 30 working days after received your down payment |
| Payment Terms | T/T |
| Supply Ability | 50,000 mt per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model Number | 3003 | Material | Aluminum Or Aluminum Alloy |
|---|---|---|---|
| State | H28 | Application | Heat Exchange Equipment，Air-conditioner, Refrigerator |
| Tensile Strength | ≥180Mpa | Non-proportional Elongation Strength MPa | ≥145 |
| Elongation After Break A50mm | ≥3.00 | Outside Diameter/mm | 8 |
| Wall Thickness/mm | 0.24 | Length | Customized |
| Shape | Coil | Specification | Refer To National Stamdars Or Customer Requirements |
| High Light | H28 3003 Aluminum Tube,Refined Processing 3003 Aluminum Tube,3003 Aluminum Pipe Corrosion Resistant |
||
Product Description
3003 Aluminum Tube Leader in the Aluminum Industry for Refined Processing
This high-quality aluminum wire material, with an external diameter ideally suited at 8mm and an internal thickness exquisitely crafted to 0.24mm, elevates the precision of our products to a new level. Its meticulous craftsmanship allows it to adapt to diverse and sophisticated applications. In diverse environments, whether in sophisticated machinery or on stable automated production lines, our 3003H28 aluminum wire demonstrates exceptional performance and stability, earning the admiration and praise of the public.
The corrosion resistance and flexibility of 3003H28 aluminum wire are further enhanced through various aluminum pipe processing techniques, enhancing its practicality significantly. After undergoing stretching, bending, stamping, and other operations, it maintains its superior flexibility, thereby enhancing the production quality and performance of aluminum alloy circular pipes.
We produce 3003H28 aluminum wire, boasting excellent plasticity, corrosion resistance, and welding performance. After undergoing hardening treatment, it offers remarkable strength and stability, along with precise size control, showcasing exceptional quality. This type of wire rod is a leader in the field of refined processing and high-performance demands, earning widespread acclaim and awards. As a pioneer in the aluminum industry, we are exceedingly proud.
Features:
Please pay attention to our 3003H28 aluminum wire, a masterpiece carefully developed and crafted by our company. It has been widely used in various industrial fields due to its exceptional performance. The unique combination of its chemical and physical properties allows it to excel in numerous applications. We often employ this product to create a range of containers, heat exchangers, and chemical treatment equipment. Furthermore, its excellent welding properties make it an ideal choice for manufacturing various welding parts.
When you choose our 3003H28 aluminum wire, you can rest assured of several advantages. Firstly, we prioritize quality, utilizing advanced production techniques and rigorous quality control measures to ensure that each and every product meets the strictest standards. Secondly, it is exceptionally durable. The 3003H28 aluminum alloy from which our aluminum wire is crafted boasts remarkable corrosion and wear resistance, enabling it to maintain consistent performance in a variety of harsh conditions for extended periods. Additionally, we pride ourselves on accurate sizing; our precision machining equipment and rigorous size measurement processes guarantee millimeter-accurate dimensions of each aluminum wire, catering to your specific needs.
Lastly, our 3003H28 aluminum wire's versatility is unparalleled. Its exceptional physical, chemical, and welding properties make it suitable for a wide range of applications across multiple industries. Regardless of your line of work, you will find the 3003H28 aluminum wire to be an indispensable figure. It is truly an all-purpose aluminum wire that caters to your diverse needs.
Production Process:
Coil pipe
Raw material procurement-inspection-cleaning-extrusion-coiling-heat treatment-flaw detection -forming-inspection-finished product packaging
Stright pipe
Raw material procurement-inspection-cleaning-extrusion-coiling-straightening-flaw detection-fine cutting-cleaning-heat treatment-inspection-finished product packaging
Techical Parameters:
Heat Exchanger Aluminum Tube
The main production specifications are listed as follows:
| Model Number | State | Wall Thickness mm | Tensile Strength MPa | Non-proportional Elongation Strength MPa | Elongation After Break A50mm |
| 1050 1060 1070 1050A | O | ≤20.00 | 60~95 | ≥70 | ≥25.00 |
| H14 | ≤10.00 | 100~135 | ≥70 | ≥5.00 | |
| 3003 3103 3A21 | O | ≤20.00 | 95~130 | ≥35 | ≥25.00 |
| H12 | ≤15.00 | 115~150 | ≥75 | ≥12.00 | |
| H14,H24 | ≤10.00 | 135~165 | ≥110 | ≥6.00 | |
| H28 | ≤3.00 | ≥180 | ≥145 | ≥3.00 |
Specifications can be customized according to customer requirements.
Applications:
Condensator
Evaporimeter
Air-conditioning
Icebox
Home freezer
Industrial freezer
Cold storage with cold exhaust pipe
Small warm wind
Lipstick shell
Eyebrow pen shell
Air conditioning connection pipe
Car water tank connecting pipe
Car air-conditioning connection pipe
Microchannel heat exchanger connecting tube
etc.
HOW TO ORDER
Firstly,here is a more detailed product description about Aluminum Alloy Tubes of Heat Exchanger.
You can then download a form from this website and fill it out with basic details.
Send it to the provided e-mail address, and our engineers will price you based on the technical specifications.
http://mao.ecer.com/test/al-tubes.com/cases/how-to-order-15643.html
Alternatively, you can download the Technical Data Requirements Sheet directly.
Yuneng Product Requirements Table.docx
