Corrosion Resistant Aluminium Round Tube For Power Stations 1050A H12 D17.2mm WT1.64mm
| Place of Origin | Changzhou China |
|---|---|
| Brand Name | Yun Neng |
| Certification | ISO9001 ISO14001 ISO45001 |
| Model Number | 1050A |
| Minimum Order Quantity | 3 tons |
| Price | negotiation |
| Packaging Details | Standard export packaging |
| Delivery Time | 30 working days after received your down payment |
| Payment Terms | T/T |
| Supply Ability | 50,000 mt per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Power Plant Air Cooling Tube | Application | Large Peak Cooler, Surface Condenser,Air-conditioner, Refrigerator |
|---|---|---|---|
| Material | Aluminum 1050A | Tensile Strength /MPa | 115-150 |
| Non-proportional Elongation Strength | ≥ 75Mpa | Elongation After Break | A50mm ≥ 14% |
| Outside Diameter/mm | 17.3 ± 0.28 | Wall Thickness/mm | 1.64± 0.28 |
| Weight (g/m) | 260 | Maximum Length/m | 15 |
| High Light | Condensator Aluminium Round Tube,1050A Corrosion Resistant Aluminium Round Tube,H12 Round Aluminium Tube |
||
Product Description

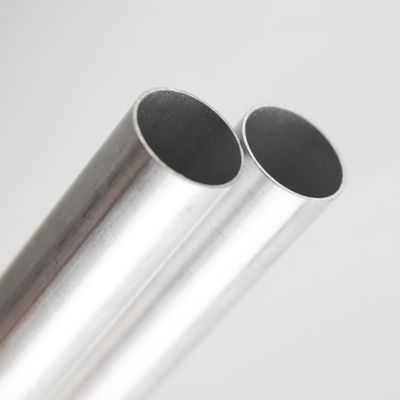

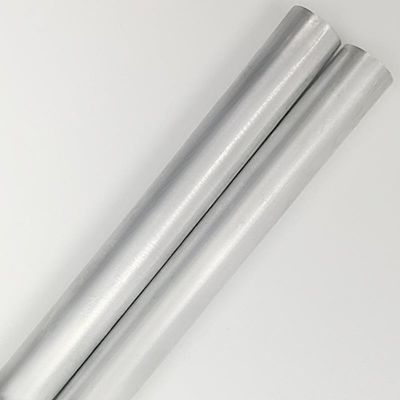

Corrosion Resistant Aluminium Round Tube for Power Stations 1050A H12 D17.2mm WT1.64mm
Product Description:

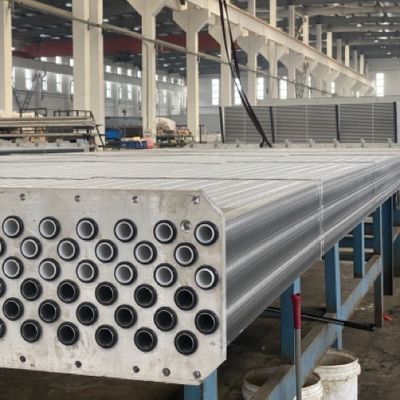

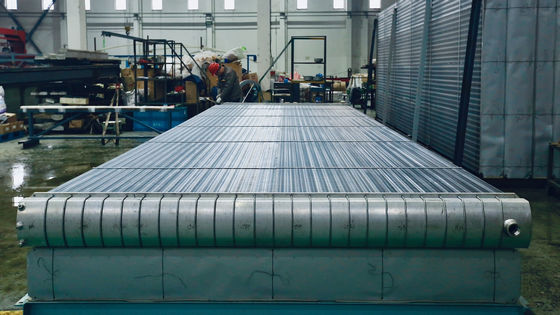

Large heat exchange equipment for large power stations, whose function is to dissipate the waste heat generated - into the air in order to keep the power generation equipment running properly.
http://mao.ecer.com/test/al-tubes.com/cases/power-plant-air-cooling-tube-product-pamphlet-15462.html
1050a is formed by adding a small amount of iron to pure aluminum, which has excellent forming and processing characteristics, high corrosion resistance, good weldability and electrical conductivity.1050a is widely used in products that do not require high strength.
Features:
Extruded Aluminum Tubes
It is weaker than seamless aluminum tubes in terms of structure and strength, but has an advantage in cost reduction due to higher production efficiency and relatively lower production difficulty.
Processing flexibility, longitudinal (extrusion direction) mechanical properties are much higher than other similar products.
Applications:
Large peak cooler
surface condenser
Large heat exchange equipment
condensator
evaporimeter
etc.
Technical Parameters:
Industrial pure aluminum are characterized by high plasticity, corrosion resistance, good electrical and thermal conductivity, but low strength, can not be strengthened by heat treatment, cuttability is not good; can accept contact welding . Gas welding.
| 1- Appearance | Aluminium tubes without defect, without blow on its surface, without scratches, without pollution like grease or oil. |
| 2- Alloy Grade | 1050A |
|
3- Composition of alloy (%) Fe Mg Mn Ti Al Autres (others) |
0.40 0.05 0.05 0.05 99.50 0.05
|
|
Model Name |
Model Number |
Outside Diameter /mm |
Wall Thickness/mm |
Maximum Length/m |
Length/mm |
Tensile Strength /MPa |
Non- proportional Elongation Strength /MPa |
Elongation After Break A50/mm |
|
Main Size |
Series 1, Series 3 |
20-32 |
0.8-2.0 |
|
5000-15000 |
|
|
|
|
Example |
1050A |
28 |
1.0 |
18 |
7969 |
100~135
|
≥80 |
≥5.00 |
|
25 |
0.9 |
6959 |
||||||
|
23 |
1.5 |
9365 |
||||||
|
32 |
1.3 |
12266 |
H12 -- tensile strength value corresponds to the intermediate value between the annealed state O and the 1/2 hard state, called the 1/4 hard state.
Main Product:
How to order:
You can then download a form from this website and fill it out with basic details.
Send it to the provided e-mail address, and our engineers will price you based on the technical specifications.
http://mao.ecer.com/test/al-tubes.com/cases/how-to-order-15643.html
Alternatively, you can download the Technical Data Requirements Sheet directly.
Yuneng Product Requirements Table.docx
