Corrosion Resistant Aluminium Round Tube for Power Stations 1050A H12 D22mm WT2.54mm
| Place of Origin | Changzhou China |
|---|---|
| Brand Name | Yun Neng |
| Certification | ISO9001 ISO14001 ISO45001 |
| Model Number | 1050A |
| Minimum Order Quantity | 3 tons |
| Price | negotiation |
| Packaging Details | Standard export packaging |
| Delivery Time | 30 working days after received your down payment |
| Payment Terms | T/T |
| Supply Ability | 50,000 mt per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Power Plant Air Cooling Tube | Application | Large Peak Cooler, Surface Condenser,Air-conditioner, Refrigerator |
|---|---|---|---|
| Material | Aluminum 1050A | Tensile Strength /MPa | 115-150 |
| Non-proportional Elongation Strength | ≥ 75Mpa | Elongation After Break | A50mm ≥ 14% |
| Outside Diameter/mm | 22 ± 0.1/-0.3 | Wall Thickness/mm | 2.54± 0.35 |
| Weight (g/m) | 331 | Maximum Length/m | 15 |
| High Light | Power Stations 20mm Aluminium Round Tube,1050A 20mm Aluminium Round Tube |
||
Product Description

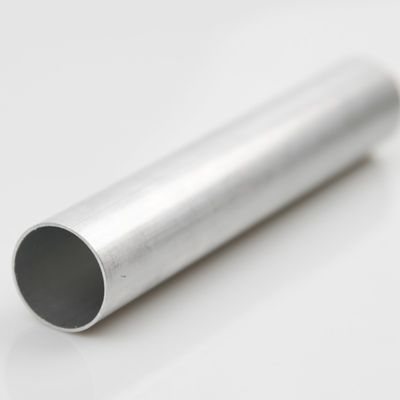

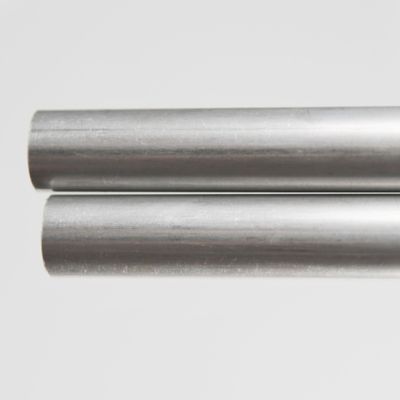

Corrosion Resistant Aluminium Round Tube for Power Stations 1050A H12 D22mm WT2.54mm
Product Description:
Large heat exchangers for big power plants are designed to release waste heat into the atmosphere so that the machinery that generates electricity may continue to operate.
http://mao.ecer.com/test/al-tubes.com/cases/power-plant-air-cooling-tube-product-pamphlet-15462.html
1050a is made of pure aluminum mixed with a little quantity of iron. Pure aluminum has excellent forming and processing qualities, great corrosion resistance, good weldability, and electrical conductivity.1050a is frequently utilized in products when extreme strength is not needed.
Features:
Extruded Aluminum Tubes
It is not as strong or structurally sound as seamless aluminum tubes, but it may be made at a lower cost due to its higher manufacturing efficiency and relatively easier production processes.
Processing flexibility and longitudinal (extrusion direction) mechanical characteristics are much higher than in other similar goods.
Applications:
Large peak cooler
surface condenser
Large heat exchange equipment
condensator
evaporimeter
etc.
Technical Parameters:
The properties of industrial pure aluminum include excellent plasticity, resistance to corrosion, strong electrical and thermal conductivity, but low strength; it cannot be reinforced by heat treatment and has poor cuttability. However, it may be welded by contact. gas welding.
| 1- Appearance | Aluminium tubes without defect, without blow on its surface, without scratches, without pollution like grease or oil. |
| 2- Alloy Grade | 1050A |
|
3- Composition of alloy (%) Fe Mg Mn Ti Al Autres (others) |
0.40 0.05 0.05 0.05 99.50 0.05
|
|
Model Name |
Model Number |
Outside Diameter /mm |
Wall Thickness/mm |
Maximum Length/m |
Length/mm |
Tensile Strength /MPa |
Non- proportional Elongation Strength /MPa |
Elongation After Break A50/mm |
|
Main Size |
Series 1, Series 3 |
20-32 |
0.8-2.0 |
|
5000-15000 |
|
|
|
|
Example |
1050A |
28 |
1.0 |
18 |
7969 |
100~135
|
≥80 |
≥5.00 |
|
25 |
0.9 |
6959 |
||||||
|
23 |
1.5 |
9365 |
||||||
|
32 |
1.3 |
12266 |
H12 -- tensile strength value corresponds to the intermediate value between the annealed state O and the 1/2 hard state, called the 1/4 hard state.
Main Product:
How to order:
You can then download a form from this website and fill it out with basic details.
Send it to the provided e-mail address, and our engineers will price you based on the technical specifications.
http://mao.ecer.com/test/al-tubes.com/cases/how-to-order-15643.html
Alternatively, you can download the Technical Data Requirements Sheet directly.
Yuneng Product Requirements Table.docx
FAQ:
http://mao.ecer.com/test/al-tubes.com/cases/faq-15908.html
