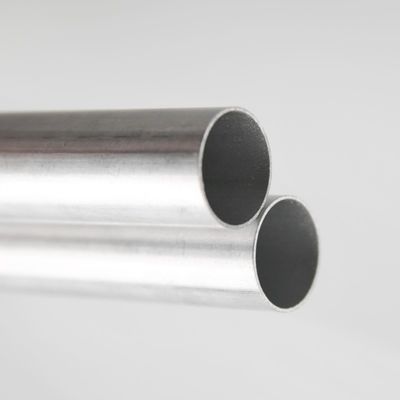

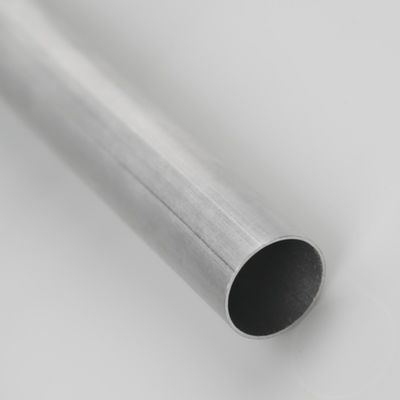

Corrosion Resistant Aluminium Round Tube For Power Stations 3103 H12 D25mm WT2.54mm

Place of Origin	Changzhou China
Brand Name	Yun Neng
Certification	ISO9001 ISO14001 ISO45001
Model Number	1050A
Minimum Order Quantity	3 tons
Price	negotiation
Packaging Details	Standard export packaging
Delivery Time	30 working days after received your down payment
Payment Terms	T/T
Supply Ability	50,000 mt per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Product Name	Power Plant Air Cooling Tube	Application	Large Peak Cooler, Surface Condenser,Air-conditioner, Refrigerator
Material	Aluminum Alloy 3103	Tensile Strength /MPa	115-150
Non-proportional Elongation Strength	≥ 75Mpa	Elongation After Break	A50mm ≥ 14%
External Diameter /mm	25 ± 0.1/-0.3	Wall Thickness/mm	2.54± 0.35
Weight (g/m)	376	Maximum Length/m	15
High Light	Power Stations 25mm Aluminium Round Tube , Power Stations 3103 Aluminium Round Tube , 25mm Aluminium Round Tube

Leave a Message

Product Description

Corrosion Resistant Aluminium Round Tube for Power Stations 3103 H12 D25mm WT2.54mm

Product Description:
Large heat exchangers for big power plants are designed to release waste heat into the atmosphere so that the machinery that generates electricity may continue to operate.
Corrosion Resistant Aluminium Round Tube For Power Stations 3103 H12 D25mm WT2.54mm 0

http://mao.ecer.com/test/al-tubes.com/cases/power-plant-air-cooling-tube-product-pamphlet-15462.html

Features:

3103 Aluminum tubes have excellent mechanical properties, good malleability.
Suitable for processing into various shapes.
Corrosion resistance, the surface is easy to generate a layer of dense oxide film, can effectively protect the internal not to be corroded.
Strong electrical conductivity, commonly used in cable wire and other electrical materials.

Extruded Aluminum Tubes

It is weaker in strength and structure than seamless aluminum tubes, but it may be made at a lower cost because to its superior production efficiency and comparatively lesser manufacturing challenges.
In comparison to other comparable goods, processing flexibility and longitudinal (extrusion direction) mechanical characteristics are greatly improved.

Applications:

Large peak cooler
surface condenser
Large heat exchange equipment
condensator
evaporimeter
etc.

Technical Parameters:

It is a series with good anti-rust function, and is commonly used as tanks and tanks for liquid products, construction processing parts, construction tools, various lamp parts, and various pressure vessels and pipelines for thin plate processing. It has good moldability, solubility, and corrosion resistance.
It is a series with good anti-rust function.

3xxx:

With the performance of 1xxx series alloy and to have a higher strength than 1xxxx series alloy, such as kitchenware, food and chemical products handling and storage devices, transportation of liquid products tanks, tanks, as well as thin plate processing of various pressure vessels and pipelines.
By the element manganese as the main component. The content is between 1.0-1.5

1- Appearance

Aluminium tubes without defect, without blow on its surface, without scratches, without pollution like grease or oil.

2- Alloy Grade

3103

3- Composition of alloy (%)

Zr+Ti

Autres (others)

≤ 0.50

≤ 0.70

≤ 0.10

0.90 – 1.50

≤ 0.30

≤ 0.10

≤ 0.20

≤ 0.10

≤ 0.15

Model Name	Model Number	Outside Diameter /mm	Wall Thickness/mm	Maximum Length/m	Length/mm	Tensile Strength /MPa	Non- proportional Elongation Strength /MPa	Elongation After Break A50/mm
Main Size	Series 1, Series 3	20-32	0.8-2.0		5000-15000
Example	1050A	28	1.0	18	7969	100~135	≥80	≥5.00
		25	0.9		6959
		23	1.5		9365
		32	1.3		12266
