Corrosion Resistant Aluminium Round Tube For Power Stations 3003 H14 D20mm WT1.64mm
| Place of Origin | Changzhou China |
|---|---|
| Brand Name | Yun Neng |
| Certification | ISO9001 ISO14001 ISO45001 |
| Model Number | 1050A |
| Minimum Order Quantity | 3 tons |
| Price | negotiation |
| Packaging Details | Standard export packaging |
| Delivery Time | 30 working days after received your down payment |
| Payment Terms | T/T |
| Supply Ability | 50,000 mt per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Power Plant Air Cooling Tube | Application | Large Peak Cooler, Surface Condenser,Air-conditioner, Refrigerator |
|---|---|---|---|
| Material | Aluminum Alloy 3003 | Tensile Strength /MPa | 135-165 |
| Non-proportional Elongation Strength | ≥ 110Mpa | External Diameter /mm | 20 ± 0.1/-0.3 |
| Wall Thickness/mm | 1.64± 0.28 | Maximum Length/m | 10 |
| High Light | Power Stations 20mm Aluminium Round Tube,Corrosion Resistant Aluminium Pipe,3003 H14 Aluminium Round Tube |
||
Product Description

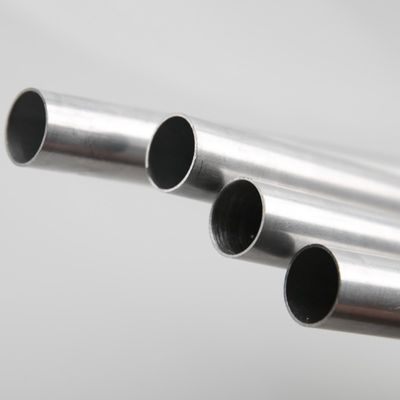

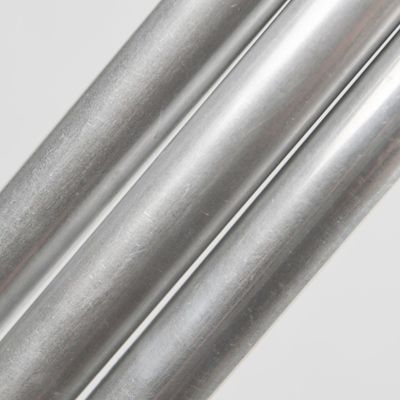

Corrosion Resistant Aluminium Round Tube for Power Stations 3003 H14 D20mm WT1.64mm
Product Description:
Large heat exchangers for big power plants are designed to release waste heat into the atmosphere so that the machinery that generates electricity may continue to operate.
http://mao.ecer.com/test/al-tubes.com/cases/power-plant-air-cooling-tube-product-pamphlet-15462.html
Features:
3003 aluminum alloy for AL-Mn system alloy, is one of the most widely used anti-corrosion aluminum, this alloy's strength is not high (slightly higher than industrial pure aluminum), can not be heat treatment to strengthen.
Therefore, the use of cold working methods to improve its mechanical properties: high plasticity in the annealed state, in the semi-cold hardening plasticity is still good, cold hardening plasticity is low, good corrosion resistance, good weldability, cutting performance is poor.
Applications:
Large peak cooler
surface condenser
Large heat exchange equipment
condensator
evaporimeter
etc.
Technical Parameters:
The 3xxx series aluminum alloy represents 3003, 3105 , 3A21 mainly. The content is between 1.0 and 1.5, and it is a series with good anti-rust function.
Commonly used for liquid products tanks, tanks, building processing parts, construction tools, a variety of lamps and lanterns parts, as well as thin plate processing of various pressure vessels and pipelines. It has good molding, solubility, and corrosion resistance.
| 1- Appearance | Aluminium tubes without defect, without blow on its surface, without scratches, without pollution like grease or oil. |
| 2- Alloy Grade | 3003 |
|
3- Composition of alloy (%) Si Fe Cu Mn Zn Autres (others) |
0.60 0.70 0.05-0.20 1.0-1.5 0.10
|
|
Model Name |
Model Number |
Outside Diameter /mm |
Wall Thickness/mm |
Maximum Length/m |
Length/mm |
Tensile Strength /MPa |
Non- proportional Elongation Strength /MPa |
Elongation After Break A50/mm |
|
Main Size |
Series 1, Series 3 |
20-32 |
0.8-2.0 |
|
5000-15000 |
|
|
|
|
Example |
1050A |
28 |
1.0 |
18 |
7969 |
100~135
|
≥80 |
≥5.00 |
|
25 |
0.9 |
6959 |
||||||
|
23 |
1.5 |
9365 |
||||||
|
32 |
1.3 |
12266 |
H14 - tensile strength value corresponds to the intermediate value between the annealed state O and the hard state, called 1/2 hard state.
Main Product:
How to order:
You can then download a form from this website and fill it out with basic details.
Send it to the provided e-mail address, and our engineers will price you based on the technical specifications.
http://mao.ecer.com/test/al-tubes.com/cases/how-to-order-15643.html
Alternatively, you can download the Technical Data Requirements Sheet directly.
Yuneng Product Requirements Table.docx
