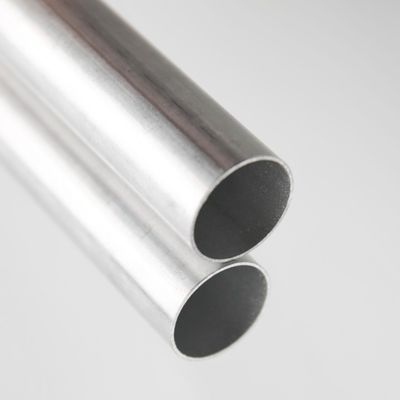

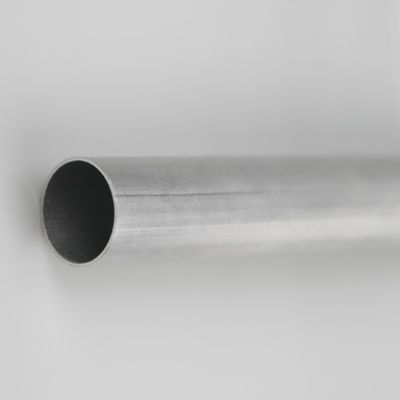

3003 T5 Corrosion Resistant Aluminium Round Tube for Power Stations D20mm WT1.64mm
| Place of Origin | Changzhou China |
|---|---|
| Brand Name | Yun Neng |
| Certification | ISO9001 ISO14001 ISO45001 |
| Model Number | 3003 |
| Minimum Order Quantity | 3 tons |
| Price | negotiation |
| Packaging Details | Standard export packaging |
| Delivery Time | 30 working days after received your down payment |
| Payment Terms | T/T |
| Supply Ability | 50,000 mt per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Power Plant Air Cooling Tube | Application | Large Peak Cooler, Surface Condenser,Air-conditioner, Refrigerator |
|---|---|---|---|
| Material | Aluminum Alloy 3003 | Tensile Strength /MPa | 135-165 |
| Non-proportional Elongation Strength | ≥ 110Mpa | External Diameter /mm | 20 ± 0.1/-0.3 |
| Wall Thickness/mm | 1.64± 0.28 | Maximum Length/m | 10 |
| High Light | Power Stations 3003 Aluminum Tube,20mm 3003 Aluminum Tube,1.64mm 3003 Aluminum Tube |
||
Product Description
3003 T5 Corrosion Resistant Aluminium Round Tube for Power Statio D20mm WT1.64mm
Product Description:
Large heat exchangers for big power plants are designed to release waste heat into the atmosphere so that the machinery that generates electricity may continue to operate.
http://mao.ecer.com/test/al-tubes.com/cases/power-plant-air-cooling-tube-product-pamphlet-15462.html
Features:
3003 aluminum alloy for AL-Mn system alloy, is one of the most widely used anti-corrosion aluminum, this alloy's strength is not high (slightly higher than industrial pure aluminum), can not be heat treatment to strengthen.
Therefore, the use of cold working methods to improve its mechanical properties: high plasticity in the annealed state, in the semi-cold hardening plasticity is still good, cold hardening plasticity is low, good corrosion resistance, good weldability, cutting performance is poor.
Applications:
Large peak cooler
surface condenser
Large heat exchange equipment
condensator
evaporimeter
etc.
Technical Parameters:
| 1- Appearance | Aluminium tubes without defect, without blow on its surface, without scratches, without pollution like grease or oil. |
| 2- Alloy Grade | 3003 |
|
3- Composition of alloy (%) Si Fe Cu Mn Zn Autres (others) |
0.60 0.70 0.05-0.20 1.0-1.5 0.10
|
|
Production Method
|
Model Number | State | Shape | Size and Tolerance | |||
| Specification(D) | Tolerance |
|
Tolerance | ||||
|
Extruded Aluminum Tubes
|
3003/3103 | O |
Coil or Straight Pipe |
D＜6 | ±0.05 |
δ≤0.60 |
±0.04 |
| φ6≤D≤10 | ±0.06 | δ≤0.8 | ±0.05 | ||||
| 0.8<δ≤1.5 | ±0.06 | ||||||
| φ10≤D≤20 | ±0.07 | 1<δ≤2 | ±0.08 | ||||
| T5 | Straight Pipe | D≤25 | ±0.15 | 1<δ≤3 | ±0.1 | ||
| Φ25＜D≤50 | ±0.2 | ±0.15 | |||||
| Φ50＜D≤80 | ±0.25 | ||||||
T5: Applies to products that are cooled by the high-temperature molding process and then artificially aged without cold working (straightening and flattening can be carried out without affecting the limits of mechanical properties).
Main Product:
How to order:
You can then download a form from this website and fill it out with basic details.
Send it to the provided e-mail address, and our engineers will price you based on the technical specifications.
http://mao.ecer.com/test/al-tubes.com/cases/how-to-order-15643.html
Alternatively, you can download the Technical Data Requirements Sheet directly.
Yuneng Product Requirements Table.docx
