3003 O Corrosion Resistant Aluminium Round Tube for Power Stations D6mm WT0.6mm
| Place of Origin | Changzhou China |
|---|---|
| Brand Name | Yun Neng |
| Certification | ISO9001 ISO14001 ISO45001 |
| Model Number | 3003 |
| Minimum Order Quantity | 3 tons |
| Price | negotiation |
| Packaging Details | Standard export packaging |
| Delivery Time | 30 working days after received your down payment |
| Payment Terms | T/T |
| Supply Ability | 50,000 mt per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Power Plant Air Cooling Tube | Application | Large Peak Cooler, Surface Condenser,Air-conditioner, Refrigerator |
|---|---|---|---|
| Material | Aluminum Alloy 3003 | Tensile Strength /MPa | 95-130 |
| Yield Strength/MPa | 50-80 | Elongation | ≥32% |
| External Diameter /mm | ＜6 ± 0.05 | Wall Thickness/mm | ≤0.60± 0.04 |
| High Light | Power Stations 3003 Aluminum Tube,6mm 3003 Aluminum Tube,0.6mm 3003 Aluminum Tube |
||
Product Description

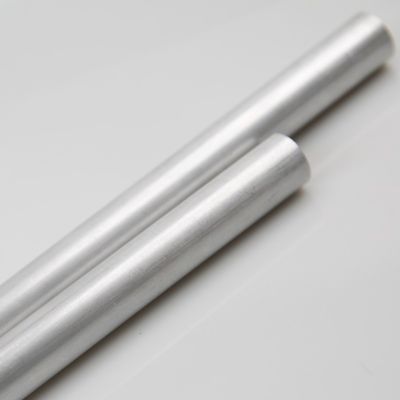

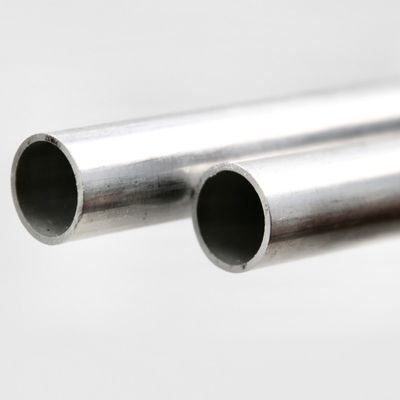

3003 O Corrosion Resistant Aluminium Round Tube for Power Stations D6mm WT0.6mm
Product Description:
Large heat exchangers for big power plants are designed to release waste heat into the atmosphere so that the machinery that generates electricity may continue to operate.
http://mao.ecer.com/test/al-tubes.com/cases/power-plant-air-cooling-tube-product-pamphlet-15462.html
Features:
3003 aluminum alloy for AL-Mn system alloy, is one of the most widely used anti-corrosion aluminum, this alloy's strength is not high (slightly higher than industrial pure aluminum), can not be heat treatment to strengthen.
Therefore, the use of cold working methods to improve its mechanical properties: high plasticity in the annealed state, in the semi-cold hardening plasticity is still good, cold hardening plasticity is low, good corrosion resistance, good weldability, cutting performance is poor.
Applications:
Large peak cooler
surface condenser
Large heat exchange equipment
condensator
evaporimeter
etc.
Technical Parameters:
| 1- Appearance | Aluminium tubes without defect, without blow on its surface, without scratches, without pollution like grease or oil. |
| 2- Alloy Grade | 3003 |
|
3- Composition of alloy (%) Si Fe Cu Mn Zn Autres (others) |
0.60 0.70 0.05-0.20 1.0-1.5 0.10
|
| Model Number | State | Tensile Strength /MPa | Yield Strength/MPa | Elongation |
| 3003 | O | 95～130 | 50-80 | ≥32% |
|
Production Method
|
Model Number | State | Shape | Size and Tolerance | |||
| Specification(D) | Tolerance |
|
Tolerance | ||||
|
Extruded Aluminum Tubes
|
3003/3103 | O |
Coil or Straight Pipe |
D＜6 | ±0.05 |
δ≤0.60 |
±0.04 |
| φ6≤D≤10 | ±0.06 | δ≤0.8 | ±0.05 | ||||
| 0.8<δ≤1.5 | ±0.06 | ||||||
| φ10≤D≤20 | ±0.07 | 1<δ≤2 | ±0.08 | ||||
| T5 | Straight Pipe | D≤25 | ±0.15 | 1<δ≤3 | ±0.1 | ||
| Φ25＜D≤50 | ±0.2 | ±0.15 | |||||
| Φ50＜D≤80 | ±0.25 | ||||||
O——Annealing
