3003 O Corrosion Resistant Aluminium Round Tube For Power Stations D20mm WT2mm
| Place of Origin | Changzhou China |
|---|---|
| Brand Name | Yun Neng |
| Certification | ISO9001 ISO14001 ISO45001 |
| Model Number | 3003 |
| Minimum Order Quantity | 3 tons |
| Price | negotiation |
| Packaging Details | Standard export packaging |
| Delivery Time | 30 working days after received your down payment |
| Payment Terms | T/T |
| Supply Ability | 50,000 mt per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Power Plant Air Cooling Tube | Application | Large Peak Cooler, Surface Condenser,Air-conditioner, Refrigerator |
|---|---|---|---|
| Material | Aluminum Alloy 3003 | Tensile Strength /MPa | 95-130 |
| Yield Strength/MPa | 50-80 | Elongation | ≥32% |
| External Diameter（D） /mm | 10≤D≤20 ± 0.07 | Wall Thickness(δ)/mm | 1<δ≤2± 0.08 |
| High Light | D20mm 3003 Aluminum Tube,Corrosion Resistant Round 3003 Aluminum Tube,3003 Aluminum Air Cooling Tube |
||
Product Description

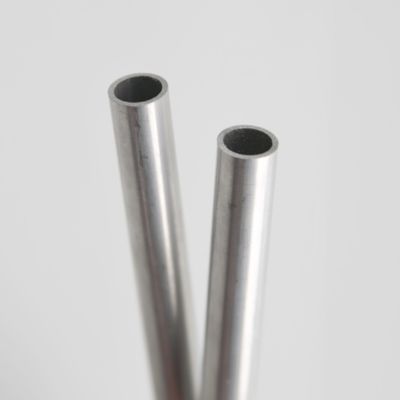

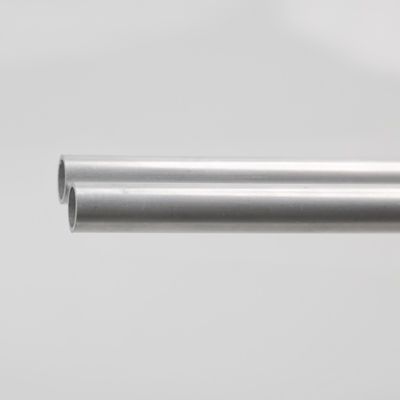

3003 O Corrosion Resistant Aluminium Round Tube for Power Stations D20mm WT2mm
Product Description:
The company has hot extrusion, composite molding, coil drawing, joint drawing, heat treatment, straightening and cutting, flaw detection and rewinding and other composite molding process production lines. According to the actual requirements of customized precision aluminum tubes, at present the main products of raw materials for the 1-series and 3-series aluminum.
http://mao.ecer.com/test/al-tubes.com/cases/power-plant-air-cooling-tube-product-pamphlet-15462.html
Features:
Extruded aluminum tubes are known for their low cost, superior corrosion resistance, non-destructive testing, zero winding points, and ease of installation.
Excellent corrosion resistance, weldability, thermal conductivity, and light weight.
Customizable length, non-destructive fault detection, zero wound point, multi-layer packaging, transportation safety length adjusted to your specifications, efficient protection Insulation from oxidation.
Applications:
Large peak cooler
surface condenser
Large heat exchange equipment
condensator
evaporimeter
etc.
Technical Parameters:
| 1- Appearance | Aluminium tubes without defect, without blow on its surface, without scratches, without pollution like grease or oil. |
| 2- Alloy Grade | 3003 |
|
3- Composition of alloy (%) Si Fe Cu Mn Zn Autres (others) |
0.60 0.70 0.05-0.20 1.0-1.5 0.10
|
Mechanical properties:
| Model Number | State | Tensile Strength /MPa | Yield Strength/MPa | Elongation |
| 3003 | O | 95～130 | 50-80 | ≥32% |
|
Production Method
|
Model Number | State | Shape | Size and Tolerance | |||
| Specification(D) | Tolerance |
|
Tolerance | ||||
|
Extruded Aluminum Tubes
|
3003/3103 | O |
Coil or Straight Pipe |
D＜6 | ±0.05 |
δ≤0.60 |
±0.04 |
| φ6≤D≤10 | ±0.06 | δ≤0.8 | ±0.05 | ||||
| 0.8<δ≤1.5 | ±0.06 | ||||||
| φ10≤D≤20 | ±0.07 | 1<δ≤2 | ±0.08 | ||||
| T5 | Straight Pipe | D≤25 | ±0.15 | 1<δ≤3 | ±0.1 | ||
| Φ25＜D≤50 | ±0.2 | ±0.15 | |||||
| Φ50＜D≤80 | ±0.25 | ||||||
O——Annealing
How to order:
You can then download a form from this website and fill it out with basic details.
Send it to the provided e-mail address, and our engineers will price you based on the technical specifications.
http://mao.ecer.com/test/al-tubes.com/cases/how-to-order-15643.html
Alternatively, you can download the Technical Data Requirements Sheet directly.
Yuneng Product Requirements Table.docx
