3003 T5 Corrosion Resistant Aluminium Round Tube For Power Stations D25mm WT3mm
| Place of Origin | Changzhou China |
|---|---|
| Brand Name | Yun Neng |
| Certification | ISO9001 ISO14001 ISO45001 |
| Model Number | 3003 |
| Minimum Order Quantity | 3 tons |
| Price | negotiation |
| Packaging Details | Standard export packaging |
| Delivery Time | 30 working days after received your down payment |
| Payment Terms | T/T |
| Supply Ability | 50,000 mt per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Power Plant Air Cooling Tube | Application | Large Peak Cooler, Surface Condenser,Air-conditioner, Refrigerator |
|---|---|---|---|
| Material | Aluminum Alloy 3003 | External Diameter（D） /mm | D≤25 ± 0.15 |
| Wall Thickness(δ)/mm | 1<δ≤3± 0.15 | ||
| High Light | D25mm 3003 Aluminum Tube,3mm 3003 Aluminum Tube,Aluminum Alloy 3003 Round Tube |
||
Product Description

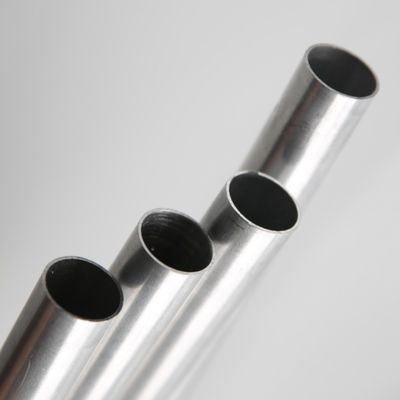

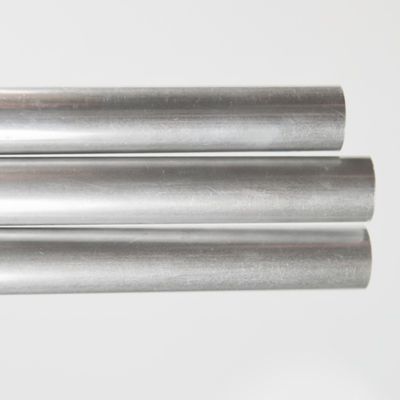

3003 T5 Corrosion Resistant Aluminium Round Tube for Power Stations D25mm WT3mm
Product Description:
The company's production lines include hot extrusion, composite molding, coil drawing, joint drawing, heat treatment, straightening and cutting, flaw detection and rewinding, and other composite molding processes. According to the current requirements of customized precision aluminum tubes, the major raw materials for the 1-series and 3-series aluminum.
http://mao.ecer.com/test/al-tubes.com/cases/power-plant-air-cooling-tube-product-pamphlet-15462.html
Features:
Aluminum alloy tubes, which ensure the precision and quality of the goods, are on par with copper tubes in terms of performance and quality, and at a cheaper cost.
Extruded aluminum tubes are well-known for their low cost, excellent corrosion resistance, non-destructive testing, no winding points, and ease of installation.
Excellent corrosion resistance, weldability, thermal conductivity, and lightweight design.
Customizable length, non-destructive defect detection, zero wound point, multi-layer packing, transportation safety length adjusted to your specifications, effective protection Protection from oxidation.

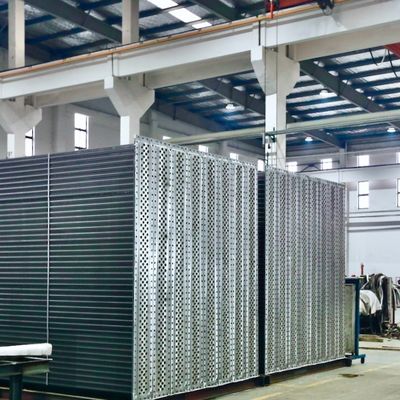

Applications:
Large peak cooler
surface condenser
Large heat exchange equipment
condensator
evaporimeter
etc.
Technical Parameters:
| 1- Appearance | Aluminium tubes without defect, without blow on its surface, without scratches, without pollution like grease or oil. |
| 2- Alloy Grade | 3003 |
|
3- Composition of alloy (%) Si Fe Cu Mn Zn Autres (others) |
0.60 0.70 0.05-0.20 1.0-1.5 0.10
|
Mechanical properties:
| Model Number | State | Tensile Strength /MPa | Yield Strength/MPa | Elongation |
| 3003 | O | 95～130 | 50-80 | ≥32% |
|
Production Method
|
Model Number | State | Shape | Size and Tolerance | |||
| Specification(D) | Tolerance |
|
Tolerance | ||||
|
Extruded Aluminum Tubes
|
3003/3103 | O |
Coil or Straight Pipe |
D＜6 | ±0.05 |
δ≤0.60 |
±0.04 |
| φ6≤D≤10 | ±0.06 | δ≤0.8 | ±0.05 | ||||
| 0.8<δ≤1.5 | ±0.06 | ||||||
| φ10≤D≤20 | ±0.07 | 1<δ≤2 | ±0.08 | ||||
| T5 | Straight Pipe | D≤25 | ±0.15 | 1<δ≤3 | ±0.1 | ||
| Φ25＜D≤50 | ±0.2 | ±0.15 | |||||
| Φ50＜D≤80 | ±0.25 | ||||||
T5: Applies to items cooled by high-temperature molding and then artificially aged without cold processing (straightening and flattening are permitted without impacting mechanical qualities).
How to order:
You can then download a form from this website and fill it out with basic details.
Send it to the provided e-mail address, and our engineers will price you based on the technical specifications.
http://mao.ecer.com/test/al-tubes.com/cases/how-to-order-15643.html
Alternatively, you can download the Technical Data Requirements Sheet directly.
Yuneng Product Requirements Table.docx
