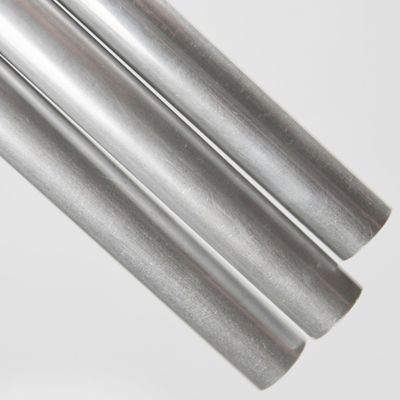

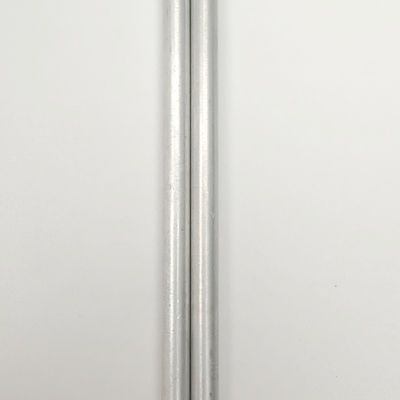

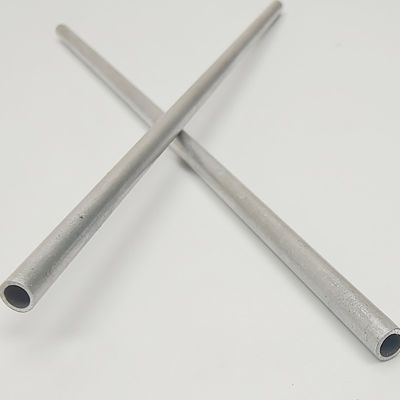

3103 O Corrosion Resistant Aluminium Round Tube For Power Stations D20mm WT1.46mm
| Place of Origin | Changzhou China |
|---|---|
| Brand Name | Yun Neng |
| Certification | ISO9001 ISO14001 ISO45001 |
| Model Number | 3103 |
| Minimum Order Quantity | 3 tons |
| Price | negotiation |
| Packaging Details | Standard export packaging |
| Delivery Time | 30 working days after received your down payment |
| Payment Terms | T/T |
| Supply Ability | 50,000 mt per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Power Plant Air Cooling Tube | Application | Large Peak Cooler, Surface Condenser,Air-conditioner, Refrigerator |
|---|---|---|---|
| Material | Aluminum Alloy 3003 | Tensile Strength /Mpa | 95-135 |
| Yield Point/Mpa | ≥35 | Post-break Elongation Or Extensibility | ≥25% |
| HBW | 28 | External Diameter /mm | 20 ± 0.1/-0.3 |
| Wall Thickness/mm | 1.64± 0.28 | Maximum Length/m | 10 |
| High Light | Large Peak Cooler Round Aluminium Pipe,Air Cooling 20mm Aluminium Round Tube,Aluminum Alloy 3003 Round Pipe |
||
Product Description
3103 O Corrosion Resistant Aluminium Round Tube for Power Statio D20mm WT1.46mm
Product Description:
Large heat exchangers for big power plants are designed to release waste heat into the atmosphere so that the machinery that generates electricity may continue to operate.
http://mao.ecer.com/test/al-tubes.com/cases/power-plant-air-cooling-tube-product-pamphlet-15462.html
Features:
3000 series aluminum rods are made of manganese element as the main component. The 3000 series aluminum alloy represents 3003, 3105 , 3A21 mainly. The content is between 1.0-1.5, it is a series with better rustproof function.Commonly used for liquid products tanks, tanks, building processing parts, construction tools, various lamps and lanterns parts, as well as thin plate processing of various pressure vessels and pipelines. It has good formability, solubility and corrosion resistance.
Applications:
Large peak cooler
surface condenser
Large heat exchange equipment
condensator
evaporimeter
etc.
Technical Parameters:
|
Production Method
|
Model Number | State | Shape | Size and Tolerance | |||
| Specification(D) | Tolerance |
|
Tolerance | ||||
|
Extruded Aluminum Tubes
|
3003/3103 | O |
Coil or Straight Pipe |
D＜6 | ±0.05 |
δ≤0.60 |
±0.04 |
| φ6≤D≤10 | ±0.06 | δ≤0.8 | ±0.05 | ||||
| 0.8<δ≤1.5 | ±0.06 | ||||||
| φ10≤D≤20 | ±0.07 | 1<δ≤2 | ±0.08 | ||||
| T5 | Straight Pipe | D≤25 | ±0.15 | 1<δ≤3 | ±0.1 | ||
| Φ25＜D≤50 | ±0.2 | ±0.15 | |||||
| Φ50＜D≤80 | ±0.25 | ||||||
