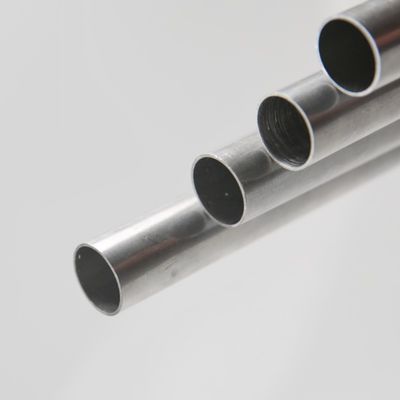

1070 D30 Aluminum Coil Tubing for Custom-made Heat Exchangers with Anti-corrosion Coating
| Place of Origin | From Jiangsu, China |
|---|---|
| Brand Name | Yun Neng |
| Certification | ISO9001 ISO14001 ISO45001 |
| Model Number | 1070 |
| Minimum Order Quantity | 3 tons |
| Price | negotiation |
| Packaging Details | Standard export packaging |
| Delivery Time | 30 working days after received your down payment |
| Payment Terms | T/T |
| Supply Ability | 50,000 mt per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Aluminum Coil Tubing | Application | Power Plant Water Cooling Tower, Surface Condenser,Air-conditioner, Refrigerator |
|---|---|---|---|
| Material | Aluminum Or Aluminum Alloy | Color | Silver |
| Tensile Strength /MPa | ≥75 | Non-proportional Elongation Strength | ≥ 80Mpa |
| Elongation After Break | A50mm ≥ 5% | Outside Diameter | 30mm |
| Wall Thickness/mm | 1.6mm | Maximum Length | 18 Meters |
| Specification | According To The National Standards Or According To Customer Special Requirements For Customization | ||
| High Light | 1070 D30 Aluminum Coil Tubing,Anti-corrosion Aluminum Coil Tubing |
||
Product Description
1070 D30 Aluminum Coil Tubing for Custom-made Heat Exchangers with Anti-corrosion Coating
Product Description:
Features:
Both the interior and external surfaces of the anti-corrosion coating of this product are coated with a particular anti-corrosion alloy. The product's service life is significantly extended, the corrosion-resistant test time exceeds 1000 hours, and the corrosion-resistant effect is noticeably better than with the standard aluminum alloy. Our organization produces products with high density and excellent heat transfer efficiency through a particular production technique. Using a large-tonnage extruder, hot extrusion, and cold mode of production can offer a wide range of state performance in terms of raw material quality control. Among the product's attributes are its high density, small tolerance, corrosion resistance, efficient heat transfer performance, and high quality.
Applications:
Power plant water cooling tower
surface condenser
Large heat exchange equipment
condensator
evaporimeter
etc.
Technical Parameters:
1070 pure aluminum, high plasticity, corrosion resistance, good electrical and thermal conductivity, suitable for aluminum foil made of gaskets and capacitors.
| 1- Appearance | Aluminium tubes without defect, without blow on its surface, without scratches, without pollution like grease or oil. |
| 2- Quality of aluminium alloy and treatment |
AlMn extruded and calibrated Type 1070 |
|
3- Composition of alloy (%)
Fe Mg Mn Ti Al Autres (others) |
≤ 0.40 ≤ 0.05 ≤ 0.05 ≤ 0.05 99.50 ≤ 0.05 |
Aluminum Coil Tubing
| (Main Size) | State | Outside Diameter /mm | Wall Thickness /mm | Length /m | Tensile Strength /MPa | Non-proportional Elongation Strength /MPa | Elongation After Break A50/mm | ||
| Model Number | |||||||||
| Main Size | |||||||||
| Series 1 | 1050 1060 1070 1050A | O | 20-32 | 0.8-2.0 | 5-15 | ≤20.00 | 60~95 | ≥70 | ≥25.00 |
| H14 | ≤10.00 | 100~135 | ≥70 | ≥5.00 | |||||
| Series 3 | 3003 3103 3A21 | O | ≤20.00 | 95~130 | ≥35 | ≥25.00 | |||
| H12 | ≤15.00 | 115~150 | ≥75 | ≥12.00 | |||||
| H14,H24 | ≤10.00 | 135~165 | ≥110 | ≥6.00 | |||||
| H28 | ≤3.00 | ≥180 | ≥145 | ≥3.00 | |||||
Support and Services:
We can provide technical support and services for the use of aluminum pipes, including technical guidance, production assistance, etc. Our experienced technicians can assist you with any problems your product may encounter. We also provide regular after-sales service to ensure that your products are always run at the highest efficiency. We are proud of our work and strive to provide the best customer service.
If you have any questions or concerns about the product or your use, please feel free to contact us. We will always give you the answers you need.
FAQ:
Q1: What kind of material alloy is the product?
A1: At present, it can produce 1 series industrial aluminum alloy, 3003 and 3103 aluminum manganese alloy, and 6 series aluminum alloy.
Q2: What state and performance of the aluminum pipe can be produced?
A2: can produce from hard state to soft state and interval performance products
Q3: Can I customize the product specifications and requirements?
A3: Different materials and products with different requirements can be customized according to the requirements
Q 4: What is the minimum starting order volume?
A 4: The minimum order volume is 3 tons.
