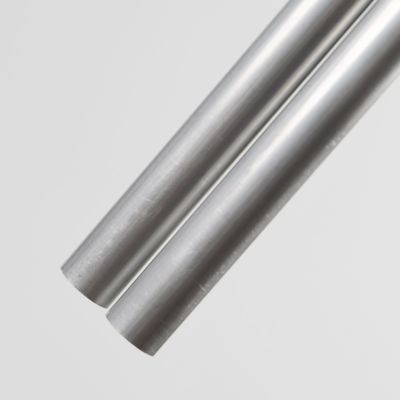

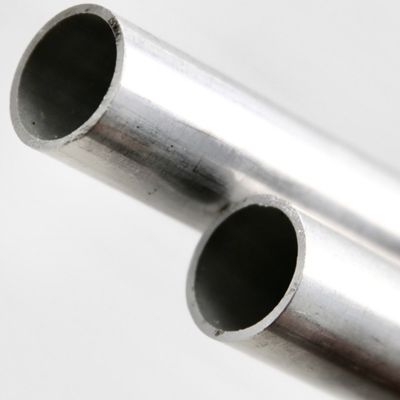

Aluminium Round Tube for Industrial with and High-Strength Aluminum Alloy Material 1070 D23
| Place of Origin | Changzhou China |
|---|---|
| Brand Name | Yun Neng |
| Certification | ISO9001 ISO14001 ISO45001 |
| Model Number | 1070 |
| Minimum Order Quantity | 3 tons |
| Price | negotiation |
| Packaging Details | Standard export packaging |
| Delivery Time | 30 working days after received your down payment |
| Payment Terms | T/T |
| Supply Ability | 50,000 mt per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Air-cooled Island Tube | Application | Large Peak Cooler, Surface Condenser,Air-conditioner, Refrigerator |
|---|---|---|---|
| Material | Aluminum Or Aluminum Alloy | Tensile Strength /MPa | 100-135 |
| Non-proportional Elongation Strength | ≥ 80Mpa | Elongation After Break | A50mm ≥ 5% |
| Outside Diameter/mm | 23 Or Customized | Wall Thickness/mm | 0.8 Or Customized |
| Length/mm | 5635 | Maximum Length/m | 18 |
| Color | Silver | ||
| High Light | Industrial 20mm Aluminium Round Tube,High-Strength 20mm Aluminium Round Tube |
||
Product Description
Aluminium Round Tube for Industrial with and High-Strength Aluminum Alloy Material 1070 D23
About the alloy material
1070Pure Aluminum
Industrial pure aluminum is highly malleable, resistant to corrosion, electrically conductive, and has strong thermal conductivity; but, it has low strength, is poorly cut, cannot be improved by heat treatment, and can be welded by gas or contact. Increased use of its benefits in the production of certain structural elements with particular characteristics, such as decorative and functional parts for aviation ventilation systems, aluminum foil used to make gaskets and capacitors, electronic tube isolation networks, wires, cables, protective sheaths, nets, and cores.
Mechanical properties
Tensile strength: σb (MPa) ≥75
Conditional yield strength: σ0.2 (MPa) ≥ 35
Specimen size: all wall thickness
Technical Parameters
|
Model Name |
Model Number |
Outside Diameter /mm |
Wall Thickness/mm |
Maximum Length/m |
Length/mm | Tensile Strength /MPa |
Non- proportional Elongation Strength /MPa |
Elongation After Break A50/mm |
| Main Size |
Series 1, Series 3 |
20-32 | 0.8-2.0 | 5000-15000 | ||||
| Example | 1070 | 22 | 0.8 | 18 | 5635 |
100~135
|
≥80 | ≥5.00 |
| 26 | 1.0 | 6000 | ||||||
| 29 | 1.5 | 7000 | ||||||
| 32 | 1.8 | 9000 |
HOW TO ORDER
Firstly,here is a more detailed product description about Aluminum Tubes for Power Plant Water Cooling Tower.
Air cooling tube.pdf
Air cooling tube-2.pdf
You can then find a form at this link to download and fill out the basic information.
Send it to the specified e-mail address and our engineers will quote you according to the technical parameters.
http://mao.ecer.com/test/al-tubes.com/cases/how-to-order-15643.html
