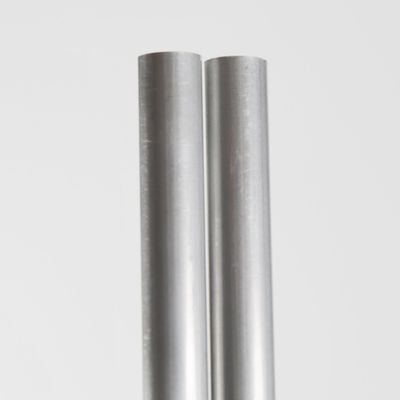

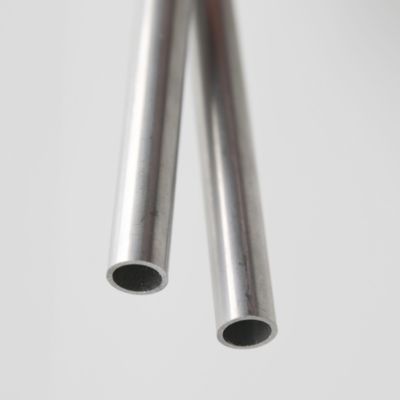

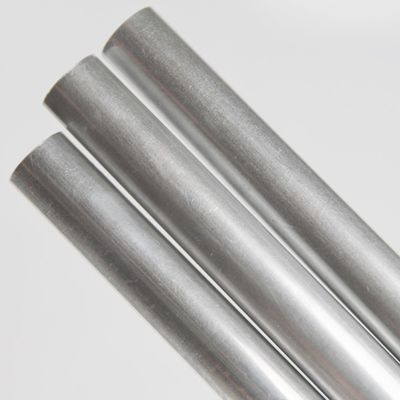

1070 D29 Precision Aluminium Round Tube Corrosion Resistant For Large Peak Cooler
| Place of Origin | Changzhou China |
|---|---|
| Brand Name | Yun Neng |
| Certification | ISO9001 ISO14001 ISO45001 |
| Model Number | 1070 |
| Minimum Order Quantity | 3 tons |
| Price | negotiation |
| Packaging Details | Standard export packaging |
| Delivery Time | 30 working days after received your down payment |
| Payment Terms | T/T |
| Supply Ability | 50,000 mt per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Air-cooled Island Tube | Application | Large Peak Cooler, Surface Condenser,Air-conditioner, Refrigerator |
|---|---|---|---|
| Material | Aluminum Or Aluminum Alloy | Tensile Strength /MPa | 100-135 |
| Non-proportional Elongation Strength | ≥ 80Mpa | Elongation After Break | A50mm ≥ 5% |
| Outside Diameter/mm | 29 Or Customized | Wall Thickness/mm | 1.5 Or Customized |
| Length/mm | 5635 | Maximum Length/m | 18 |
| Color | Silver | ||
| High Light | 1070 Precision Aluminium Round Tube,Corrosion Resistant 20mm Aluminium Round Tube,Peak Cooler Aluminium Round Tube |
||
Product Description
Power Plant Water Cooling Tower Precision Aluminum Tube Aluminum Tube 1070 D29
About the alloy material
1070Pure Aluminum
Industrial pure aluminum has great plasticity, corrosion resistance, electrical conductivity, and thermal conductivity, but it has low strength, cannot be enhanced by heat treatment, has poor cutting properties, and can be welded with touch or gas. Increased use of its benefits in the production of various structural elements with special features, such as aluminum foil constructed of gaskets and capacitors, electronic tube isolation network, wires, cables, protective sheaths, nets, cores, aviation ventilation system parts, and ornamental parts.
Mechanical properties
Tensile strength: σb (MPa) ≥75
Conditional yield strength: σ0.2 (MPa) ≥ 35
Specimen size: all wall thickness
Technical Parameters
|
Model Name |
Model Number |
Outside Diameter /mm |
Wall Thickness/mm |
Maximum Length/m |
Length/mm | Tensile Strength /MPa |
Non- proportional Elongation Strength /MPa |
Elongation After Break A50/mm |
| Main Size |
Series 1, Series 3 |
20-32 | 0.8-2.0 | 5000-15000 | ||||
| Example | 1070 | 22 | 0.8 | 18 | 5635 |
100~135
|
≥80 | ≥5.00 |
| 26 | 1.0 | 6000 | ||||||
| 29 | 1.5 | 7000 | ||||||
| 32 | 1.8 | 9000 |
HOW TO ORDER
Firstly,here is a more detailed product description about Aluminum Tubes for Power Plant Water Cooling Tower.
Air cooling tube.pdf
Air cooling tube-2.pdf
You can then find a form at this link to download and fill out the basic information.
Send it to the specified e-mail address and our engineers will quote you according to the technical parameters.
http://mao.ecer.com/test/al-tubes.com/cases/how-to-order-15643.html
