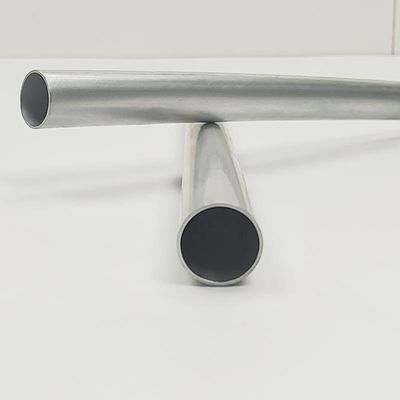

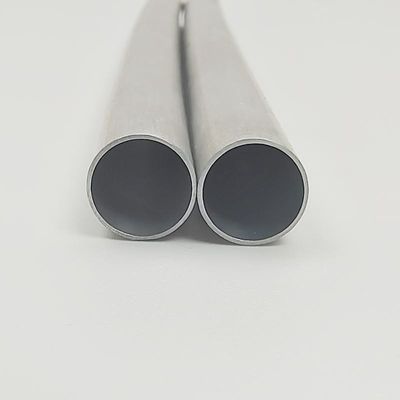

Grade 3103 H12 Aluminum Alloy For External Diameter 17.5 mm Aluminum Tube Radiator
| Place of Origin | From Jiangsu, China |
|---|---|
| Brand Name | YunNeng |
| Certification | ISO9001 ISO4001 ISO45001 |
| Model Number | 3003 |
| Minimum Order Quantity | 3 metric tons |
| Price | Negotiation |
| Packaging Details | Standard export packaging |
| Delivery Time | 30 working days after received your down payment |
| Payment Terms | T/T |
| Supply Ability | 50,000 mt per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Anti-corrosion | Product Name | Cold Drawn Aluminium Tube |
|---|---|---|---|
| Model Number | 3103 | State | H12 |
| Shape | Round | Outside Diameter/mm | 17.5 |
| Thickness/mm | 1.55 | ||
| High Light | Internal Threaded Grooved Aluminum Pipe,Aluminum 3003 Internal Threaded Tube,Corrosion Protection Grooved Aluminum Pipe |
||
Product Description
Grade 3103 H12 Aluminum Alloy For External Diameter 17.5 mm Aluminum Tube Radiator
Indeed, the critical 3003 threaded inner tube supercharges evaporative cooling in your home's central A/C unit. This VITAL component of vapour heating condenses outdoor water via its function. Essential for both residential / commercial air conditioning heat exchange or elevated temperature pipes.
Our adaptability makes us a breeze to work with. We understand your unique requirements are our priority.
Customization tailored to your exact specs is always an option. We utilize cutting-edge tech and our robust quality control system ensures top-notch aluminium tubes. Committed to offering you superior, reliable goods.
http://mao.ecer.com/test/al-tubes.com/cases/power-plant-air-cooling-tube-product-pamphlet-15462.html
Features:
Discover our selection of internally threading aluminum tubes, available in diverse tooth styles like thin-walled, high teeth, low teeth, fine teeth, or small teeth. Let us know what you need, we'll tailor the perfect tube for you!
These tubes, often known as dry steam, inner finned tubes, or inner finned tubes, excel at heat exchange and see regular use in air conditioning dry evaporators. Crafting involves both tension and welding techniques.
Technical Parameters:
Internal Thread Aluminum Tubing
| Product Name | Model Number | State | SWAAT＞1000 h Tensile Strength 95-130 Mpa Yield Strength 50-80 Mpa Elongation≥32% Flare>40% | ||||||||
| (Material) | Outside Diameter/mm | Thickness/mm | Tooth Depth/mm | TWT/mm | Addendum Angle/(°) | Helix Angle/(°) | Number of Teeth | Shape | |||
| Main Size | 3003 | O | 5-13 | 0.3-0.8 | 0.05-0.25 | 0.35-1.05 | 16-60 | 0-30 | 30-70 | Coil | |
| Example | Normal D7 | 3003 | 7±0.05 | 0.47±0.03 | 0.25 | 0.97 | 18±5 | 18±2 | 50 | ||
| ECR D7 | 3003N | 7±0.05 | 0.55±0.03 | 0.25 | 0.8 | 28±5 | 28±2 | 65 | |||
| ECR D5 | 5±0.05 | 0.35±0.03 | 0.2 | 0.55 | 20±5 | 20±2 | 45 | ||||
| ECR D7 | 7±0.05 | 0.40±0.03 | 0.2 | 0.6 | 25±5 | 25±2 | 65 | ||||
Applications:
condensator
evaporimeter
air conditioner external unit
Small heat exchanger
frigistor
packaged air conditioner
Dry wet machine
etc.
Support and Services:
We offer technical support and services related to thread aluminum pipes, like production start-up, bend shaping, pipe elevating, welding and other post-production aid. Experienced technicians are on hand to resolve product issues. Regular after-sales care ensures superior performance and satisfaction. Proud of our craftsmanship and commitment to excellent customer service, we welcome all inquiries and feedback.
FAQ:
http://mao.ecer.com/test/al-tubes.com/cases/faq-15908.html
