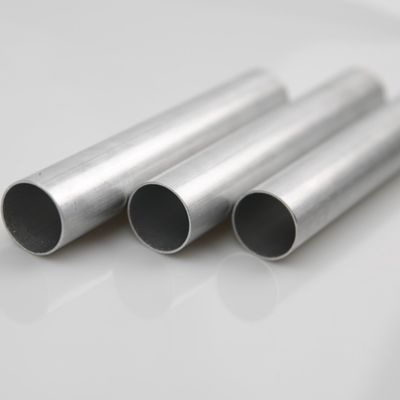

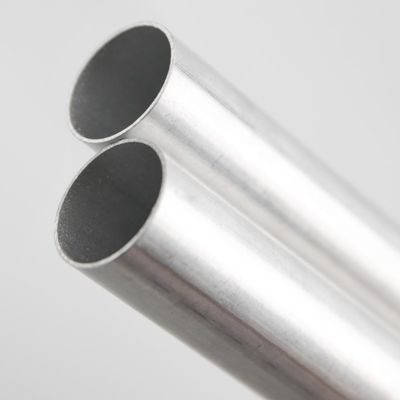

1070 Pure Aluminum Coil Tubing Flexible and Easy to Shape for Various Industrial Needs
| Place of Origin | Changzhou, China |
|---|---|
| Brand Name | Yun Neng |
| Certification | ISO9001 ISO14001 ISO45001 |
| Model Number | 1070 |
| Minimum Order Quantity | 3 tons |
| Price | negotiation |
| Packaging Details | Standard export packaging |
| Delivery Time | 30 working days after received your down payment |
| Payment Terms | T/T |
| Supply Ability | 50,000 mt per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Air-cooled Island Tube | Application | Large Peak Cooler, Surface Condenser,Air-conditioner, Refrigerator |
|---|---|---|---|
| Material | Aluminum Or Aluminum Alloy | Tensile Strength /MPa | 100-135 |
| Non-proportional Elongation Strength | ≥ 80Mpa | Elongation After Break | A50mm ≥ 5% |
| Outside Diameter/mm | 22 Or Customized | Wall Thickness/mm | 0.8 Or Customized |
| Length/mm | 5635 | Maximum Length/m | 18 |
| Color | Silver | ||
| High Light | Pure Aluminum Coil Tubing,1070 Aluminum Coil Tubing,Flexible Aluminum Coil Tubing |
||
Product Description
1070Pure Aluminum Coil Tubing Flexible and Easy to Shape for Various Industrial Needs
1070Pure Aluminum
Industrial pure aluminum boasts remarkable plasticity, corrosion resistance, electrical conductivity, and thermal conductivity. However, it exhibits low strength, cannot be strengthened through heat treatment, and possesses inferior cutting properties. Despite these limitations, it can be welded using touch or gas welding techniques. The expanded utilization of its advantageous properties has found widespread applications in the production of diverse structural elements with specialized features. These include aluminum foil used in gaskets and capacitors, electronic tube isolation networks, wires, cables, protective sheaths, nets, cores, parts of aviation ventilation systems, and ornamental components.
http://mao.ecer.com/test/al-tubes.com/cases/power-plant-air-cooling-tube-product-pamphlet-15462.html
Mechanical properties
Tensile strength: σb (MPa) ≥75
Conditional yield strength: σ0.2 (MPa) ≥ 35
Specimen size: all wall thickness
Technical Parameters
|
Model Name |
Model Number |
Outside Diameter /mm |
Wall Thickness/mm |
Maximum Length/m |
Length/mm | Tensile Strength /MPa |
Non- proportional Elongation Strength /MPa |
Elongation After Break A50/mm |
| Main Size |
Series 1, Series 3 |
20-32 | 0.8-2.0 | 5000-15000 | ||||
| Example | 1070 | 22 | 0.8 | 18 | 5635 |
100~135
|
≥80 | ≥5.00 |
| 26 | 1.0 | 6000 | ||||||
| 29 | 1.5 | 7000 | ||||||
| 32 | 1.8 | 9000 |
Firstly,here is a more detailed product description about Aluminum Tubes for Power Plant Water Cooling Tower.
Air cooling tube.pdf
Air cooling tube-2.pdf
You can then find a form at this link to download and fill out the basic information.
Send it to the specified e-mail address and our engineers will quote you according to the technical parameters.
http://mao.ecer.com/test/al-tubes.com/cases/how-to-order-15643.html
How to order:
You can then download a form from this website and fill it out with basic details.
Send it to the provided e-mail address, and our engineers will price you based on the technical specifications.
http://mao.ecer.com/test/al-tubes.com/cases/how-to-order-15643.html
Alternatively, you can download the Technical Data Requirements Sheet directly.
Yuneng Product Requirements Table.docx
FAQ:
