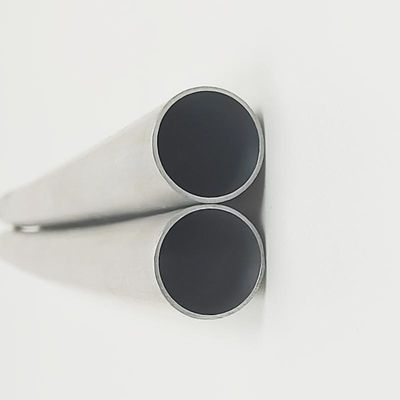

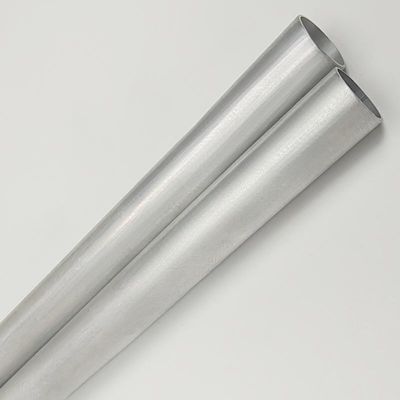

3003 Antiseptic Aluminum Alloy Tube For Refrigeration With An Outer Diameter Of 9.9mm

3003 Antiseptic Aluminum Alloy Tube For Refrigeration With An Outer Diameter Of 9.9mm

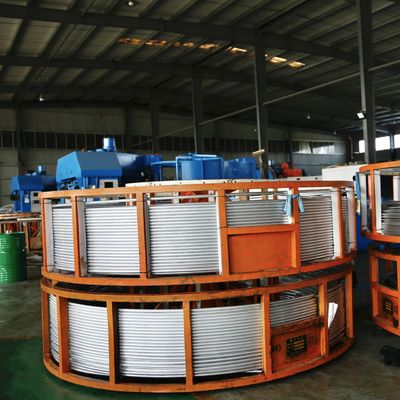

Our product, built using 3003H28 aluminum tube pancake coils, epitomizes exceptional engineering. This rust-resistant alloy, with a meticulously balanced 1.0%-1.5% manganese content, guarantees optimal performance across different tasks. Its versatility enables smooth adaptation within varied industrial settings, making it a superb fit for an array of situations.

Thanks to its robust resistance to corrosion, this aluminum tube excels at heat exchanges, significantly impacting the efficiency of refrigeration and air conditioning systems. Plus, its superb welding traits facilitate efficient component connections, ensuring higher overall stability.

Weighing exactly 9.8 mm in diameter and 0.6 mm thick, this tube serves as a powerful asset in numerous industries like air conditioners, refrigerators, and automotive air conditioning devices. Its remarkable adaptability effectively caters to diversified application needs.

In summation, the 3003H28 aluminum tube pancake coil stands tall as a vital metal in refrigeration and air conditioning boasting an unrivaled, reliable, and affordable solution for present-day refrigeration gear. This ensures enduring performance and substantial value.

Features:

Our equipment proudly crafts aluminum round tubes with supreme accuracy. Our special 3003 tube delivers impressive resistance to corrosion, flexibility, and strength. The fusion of precision and annealing yields superior mechanical attributes post-cold working.

Furthermore, our glossy, reflective tubing safeguards against harsh chemicals, guaranteeing unchanging performance. Its dependable seal is provided by a uniformly dispersed aluminum foil core that effectively screens off moisture and smells. Ideal for high-pressure operations, it provides rock-hard pipeline protection.

Besides, our 3003 cylinder tube exhibits remarkable heat resistance, enduring even at high temperatures. Enhancements after cold working guarantee constant functionality, effortlessly adapting to varied heated conditions.

Lastly, our tubes' straightforward assembly brings convenience. Their light weight and flexibility enable easy bending and connection. With outstanding sturdiness, they guarantee safety whilst boosting efficiency.



Production Process:

Coil pipe
Raw material procurement-inspection-cleaning-extrusion-coiling-heat treatment-flaw detection -forming-inspection-finished product packaging

Stright pipe
Raw material procurement-inspection-cleaning-extrusion-coiling-straightening-flaw detection-fine cutting-cleaning-heat treatment-inspection-finished product packaging





echical Parameters:



Heat Exchanger Aluminum Tube
The main production specifications are listed as follows:

Model Number	State	Wall Thickness mm	Tensile Strength MPa	Non-proportional Elongation Strength MPa	Elongation After Break A50mm
1050 1060 1070 1050A	O	≤20.00	60~95	≥70	≥25.00
	H14	≤10.00	100~135	≥70	≥5.00
3003 3103 3A21	O	≤20.00	95~130	≥35	≥25.00
	H12	≤15.00	115~150	≥75	≥12.00
	H14,H24	≤10.00	135~165	≥110	≥6.00
	H28	≤3.00	≥180	≥145	≥3.00

Specifications can be customized according to customer requirements.





Applications:



Condensator
Evaporimeter
Air-conditioning
Icebox
Home freezer
Industrial freezer
Cold storage with cold exhaust pipe
Small warm wind
Lipstick shell
Eyebrow pen shell
Air conditioning connection pipe
Car water tank connecting pipe
Car air-conditioning connection pipe
Microchannel heat exchanger connecting tube
etc.
