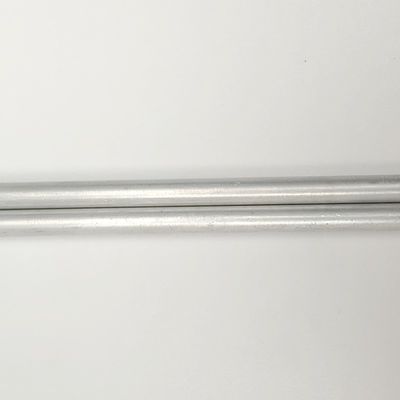

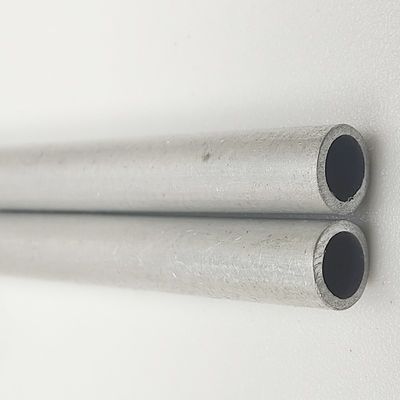

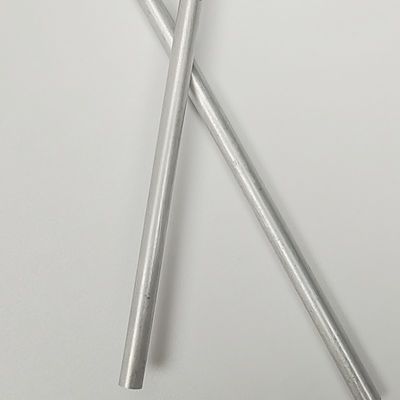

Refrigeration Equipment Piping 20mm Aluminum Pipe 1050A D24 80Mpa Corrosion Resistance
| Place of Origin | Changzhou China |
|---|---|
| Brand Name | Yun Neng |
| Certification | ISO9001 ISO14001 ISO45001 |
| Model Number | 1050A |
| Minimum Order Quantity | 3 tons |
| Price | negotiation |
| Packaging Details | Standard export packaging |
| Delivery Time | 30 working days after received your down payment |
| Payment Terms | T/T |
| Supply Ability | 50,000 mt per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Air-cooled Island Tube | Application | Large Peak Cooler, Surface Condenser,Air-conditioner, Refrigerator |
|---|---|---|---|
| Material | Aluminum Or Aluminum Alloy | Tensile Strength /MPa | 100-135 |
| Non-proportional Elongation Strength | ≥ 80Mpa | Elongation After Break | A50mm ≥ 5% |
| Outside Diameter/mm | 24 Or Customized | Wall Thickness/mm | 1.1 Or Customized |
| Length/mm | 7969 | Maximum Length/m | 18 |
| Color | Silver | ||
| High Light | 1050A D24 20mm aluminum pipe,Refrigeration equipment 20mm aluminum pipe,80Mpa 20mm aluminum pipe |
||
Product Description
Refrigerating Apparatus
Air-cooled island tube
Technical Parameters:
|
Model Name |
Model Number |
Outside Diameter /mm |
Wall Thickness/mm |
Maximum Length/m |
Length/mm | Tensile Strength /MPa |
Non- proportional Elongation Strength /MPa |
Elongation After Break A50/mm |
| Main Size |
Series 1, Series 3 |
20-32 | 0.8-2.0 | 5000-15000 | ||||
| Example | 1050A | 28 | 1.0 | 18 | 7969 |
100~135
|
≥80 | ≥5.00 |
| 25 | 0.9 | 6959 | ||||||
| 23 | 1.5 | 9365 | ||||||
| 32 | 1.3 | 12266 |
Air-cooled Island Tube
1050A
Product Description:
We provide technical support and services for the use of aluminum tubes, and help customers solve production problems in the actual use process. Including aluminum pipe performance testing, technical analysis, the use of back channel, aluminum pipe welding, aluminum pipe bending, finished product leakage detection, etc., at the same time, we will also help customers solve related problems encountered in use as soon as possible. And make corresponding adjustments according to the actual situation.
Features:
Special anti-corrosion alloy is used, and anti-corrosion layers are added on the inner and outer surfaces. Compared with ordinary aluminum alloy, the corrosion resistance effect is greatly improved, and the service life of the product can be greatly improved if the corrosion resistance test lasts more than 1000 hours. Adopting special production technology, the product has high density and efficient heat transfer performance. From the quality control of raw materials, various state properties can be produced by using large-tonnage extruder and hot extrusion and cold drawing production mode. The product has high density, high heat transfer performance, high corrosion resistance, small tolerance range and better quality.
Applications:
Large peak cooler
surface condenser
Large heat exchange equipment
condensator
evaporimeter
etc.
Support and Services:
We can provide technical support and services for the use of aluminum pipes, including technical guidance and production assistance. Our experienced technicians can help you solve any problems that the product may encounter. We also provide regular after-sales service to ensure that your products always run at the highest efficiency.
We are proud of our work and strive to provide the best customer service. If you have any questions or concerns about the product or use, please feel free to contact us. We will always provide you with the answers you need.
FAQ:
-
Q1: What kind of material alloy is the product?
A1: At present, it can produce 1 series industrial aluminum alloy, 3003 and 3103 aluminum manganese alloy.
Q2: What state and performance of the aluminum pipe can be produced?
A2: can produce from hard state to soft state and interval performance products
Q3: Can I customize the product specifications and requirements?
A3: Different materials and products with different requirements can be customized according to the requirements
Q 4: What is the minimum starting order volume?
A 4: The minimum order volume is 3 tons.
