3003 Grooved Aluminum Pipe Heat Transfer Element Internal Threaded Tube Φ7mm
| Place of Origin | From Changzhou, Jiangsu Province |
|---|---|
| Brand Name | YunNeng |
| Certification | ISO9001 ISO4001 ISO45001 |
| Model Number | 3003 |
| Minimum Order Quantity | 3 metric tons |
| Price | Negotiation |
| Packaging Details | Standard export packaging |
| Delivery Time | 30 working days after received your down payment |
| Payment Terms | T/T |
| Supply Ability | 50,000 mt per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model Name | 3003 | Outside Diameter/mm | 7±0.05 Or Customized |
|---|---|---|---|
| Thickness/mm | 0.55±0.03 Or Customized | Tooth Depth/mm | +0.25 Or Customized |
| Number Of Teeth | 40-50 Or Customized | Treatment Process | Oil The Inner Layer |
| Shape | Coil | Material | Aluminum Alloy Or Aluminum |
| Length | Customized | Specification | With Reference To The National Standard Or Customer Requirements, We Can Meet The Customer's Needs For Flaring And Bending, And Can Be Customized To Various Specifications. |
| High Light | 3003 Grooved Aluminum Pipe,Grooved Aluminum Pipe 7mm,0.55mm internally threaded aluminum tube |
||
Product Description

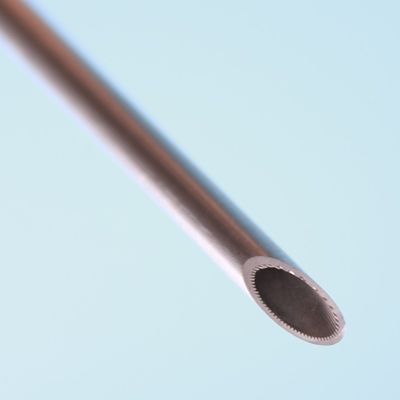

3003 Heat Transfer Element Internal Threaded Tube Φ7mm Outside Diameter
Product Description:
3003 high-efficiency corrosion-resistant aluminum tube, is a more reliable, more efficient heat transfer components, suitable for a variety of refrigeration equipment in the use of evaporator and condenser flow tube.
The main medium used in the pipeline is: refrigerant, refrigerant, etc. . Unique different threads and high teeth inside the inner surface can greatly increase the heat exchange area of the product, reduce the use of refrigerating media, optimize costs.
The inner wall of the threaded tube can be machined according to customer's requirements. To meet the requirements of follow-up process products. Can also be customized according to customer needs.
Features:
The products of inner thread tube have different tooth shapes such as thin-wall, high-tooth, low-tooth, fine-tooth, small-tooth, etc. . Can provide the required parameters to us.
As an efficient heat transfer element, with efficient aluminum or aluminum alloy fin, fin tube is widely used in air conditioning system condenser and evaporator.
Technical Parameters:
Internal Thread Aluminum Tubing
| Product Name | Model Number | State | SWAAT＞1000 h Tensile Strength 95-130 Mpa Yield Strength 50-80 Mpa Elongation≥32% Flare>40% | ||||||||
| (Material) | Outside Diameter/mm | Thickness/mm | Tooth Depth/mm | TWT/mm | Addendum Angle/(°) | Helix Angle/(°) | Number of Teeth | Shape | |||
| Main Size | 3003 | O | 5-13 | 0.3-0.8 | 0.05-0.25 | 0.35-1.05 | 16-60 | 0-30 | 30-70 | Coil | |
| Example | Normal D7 | 3003 | 7±0.05 | 0.47±0.03 | 0.25 | 0.97 | 18±5 | 18±2 | 50 | ||
| ECR D7 | 3003N | 7±0.05 | 0.55±0.03 | 0.25 | 0.8 | 28±5 | 28±2 | 65 | |||
| ECR D5 | 5±0.05 | 0.35±0.03 | 0.2 | 0.55 | 20±5 | 20±2 | 45 | ||||
| ECR D7 | 7±0.05 | 0.40±0.03 | 0.2 | 0.6 | 25±5 | 25±2 | 65 | ||||
Applications:
condensator
evaporimeter
air conditioner external unit
Small heat exchanger
frigistor
packaged air conditioner
Dry wet machine
etc.
Support and Services:
We can provide technical support and services for the use of thread aluminum pipes, including the production of the opening, bending, pipe raising, welding and other rear process technical guidance, assistance in production, etc. Our experienced technicians can assist you with any problems your product may encounter. We also provide regular after-sales service to ensure that your products are always run at the highest efficiency. We are proud of our work and strive to provide the best customer service.
If you have any questions or concerns about the product or your use, please feel free to contact us.
FAQ.:
Q1: What kind of material alloy is the product?
A1: two materials are available, 3003 anti-corrosion aluminum alloy material and 30588 efficient anti-corrosion aluminum alloy material.
Q2: Product final status?
A2: The final state of the product is soft aluminum coil, threaded pipe inner surface can be coated with inner rising tube oil
Q3: Can I customize the product specifications and requirements?
A3: Different materials and products with different requirements can be customized according to the requirements
Q 4: What is the minimum starting order volume?
A 4: The minimum order volume is 3 tons.
