3003 H14 High Strength Round Aluminum Tube 0.7 - 2.0mm For Heat Exchanger
| Place of Origin | Changzhou China |
|---|---|
| Brand Name | Yun Neng |
| Certification | ISO9001 ISO14001 ISO45001 |
| Model Number | 3003 |
| Minimum Order Quantity | 3 tons |
| Price | negotiation |
| Packaging Details | Standard export packaging |
| Delivery Time | 30 working days after received your down payment |
| Payment Terms | T/T |
| Supply Ability | 50,000 mt per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Aluminum Alloy Calandria | Outside Diameter | 7-30mm Or Customized |
|---|---|---|---|
| Wall Thickness | 0.7-2.0mm Or Customized | Salt Spray Corrosion Test | > 1500 Hours |
| Yield Strength /Mpa | ≥110 | Elongation After Break A50mm | ≥5% |
| Tensile Strength/Mpa | 130-165 | State | H14 |
| Shape | Coil | ||
| High Light | High Strength Aluminum Alloy Tube 0.7mm,3003 H14 Round Aluminum Tube,Heat Exchanger 3003 Aluminum Tube |
||
Product Description
High Tensile Aluminium Tube Flat Plate Solar Collector Calandria 3003 H14
Product Description:

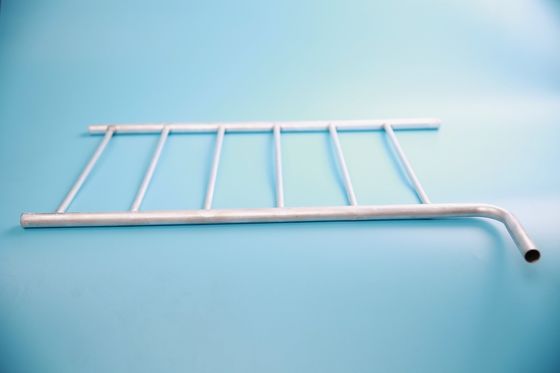

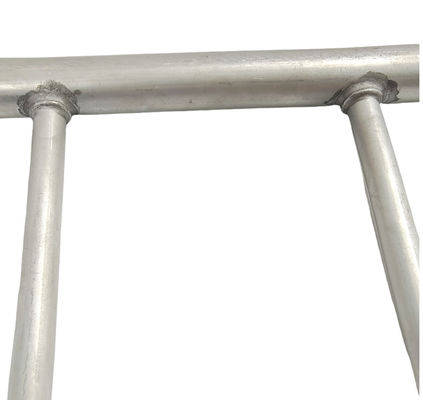

Tube-plate heat-absorbing plate
Flat plate solar collector tube-plate heat-absorbing plate is to connect the row of tubes with the flat plate in a certain way to form heat-absorbing strips, and then welded with the upper and lower collector tubes to form the heat-absorbing plate of the flat plate solar collector. This is the more common type of heat-absorbing plate structure used at home and abroad.
Applications:
Flat-panel solar energy collector
solar collector
heat exchanger
Solar tube
Vacuum solar tube
Wall-mounted flat plate collector
Large solar energy collector
Technical Parameters:
Aluminum Alloy Calandria
| Product Name |
Model Number (Material) |
State | Salt Spray Corrosion Test >1500 hours Pressure Resistance ＞15 Mpa | ||||||
| Outside Diameter/mm | Thickness/mm | Tensile Strength/Mpa | Yield Strength /Mpa | Elongation | Length/mm | Shape | |||
|
Main Size Example |
3003 | H14 | 7-30 | 0.7-2.0 | 130-165 | ≥110 | ≥5% |
Customized
|
Coil |
| H12 | 115-150 | ≥75 | ＞12% | ||||||
| O | 95-130 | ＞60 | ≥30% | ||||||
| Calandria |
H14, H12, O |
10 |
0.8-1.2
|
Customized | |||||
| 8 | |||||||||
| 12 | |||||||||
| Can customize the production of a variety of specifications of the collector tubes. | |||||||||
