3003 Internal Thread Grooved Aluminum Pipe For Evaporators And Condensers D9.52mm
| Place of Origin | Changzhou, China |
|---|---|
| Brand Name | Yun Neng |
| Certification | ISO9001 ISO14001 ISO45001 |
| Model Number | 3003 |
| Minimum Order Quantity | 3 metric tons |
| Price | negotiation |
| Packaging Details | Standard export packaging |
| Delivery Time | 30 working days after received your down payment |
| Payment Terms | T/T |
| Supply Ability | 50,000 mt per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Internally Threaded Pipe | Application | Refrigerating Apparatus，Heat Exchange Equipment |
|---|---|---|---|
| Model Number | 3003 | Outside Diameter/mm | 9.52 |
| Thickness/mm | 0.6 | Tooth Depth/mm | +0.02 |
| Number Of Teeth | 50-60 | Shape | Coil |
| Treatment Process | Oil The Inner Layer | Specification | With Reference To The National Standard Or Customer Requirements, We Can Meet The Customer's Needs For Flaring And Bending, And Can Be Customized To Various Specifications. |
| Details | Tensile Strength>130Mpa, Elongation≥35%, Flaring Rate>40%. Special Production Process, High Density And Efficient Heat Transfer Performance. | Sample | Samples Are Free, Postage Paid By The Customer. |
| High Light | 3003 Grooved Aluminum Pipe,Grooved Aluminum Pipe for Evaporators,inside threaded pipe D9.52mm |
||
Product Description

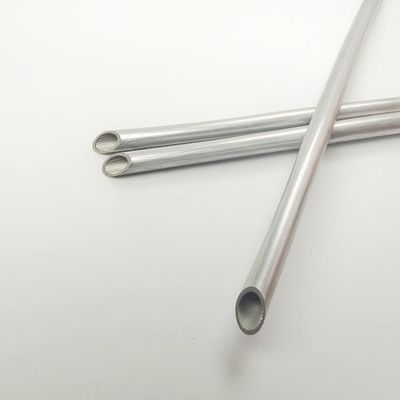

3003 Internal Thread Aluminum Pipe for Evaporators and Condensers D9.52mm
Product Description:
3003 anti-corrosion aluminum threaded aluminum tubes are ideal heat transfer elements for evaporators and condenser flow tubes in various refrigeration equipment. They can work with different media such as refrigerant and refrigerant. They have unique inner thread shapes and heights that can greatly increase the heat exchange area, reduce the refrigerant consumption, and optimize the cost. The main product specifications are φ9.52 φ7.94 φ7 φ5 and others. We can also customize the specifications and performance according to your needs. We can also coat the inner wall of the threaded pipe with internal oil as per your request. This can meet the demand for pipe expansion process products in the later stage. The product is made of aluminum alloy and has a silver appearance. The final product form is: coiled pipe. Our aluminum pipes are strictly controlled from raw materials to every production process, and comply with the quality system management system. We provide the highest quality and most stable products.
Features:
Our 3003 internally threaded aluminum tube is an ideal heat exchange element for evaporator and condenser flow tubes in a variety of refrigeration equipment.
Our 3003 internally threaded aluminum pipes are made of 3003 anti-corrosion aluminum alloy or our unique high-efficiency anti-corrosion aluminum alloy, which has good corrosion resistance and strength. They can resist various corrosive media and extend the service life of the product. You can choose from two different materials depending on your needs.

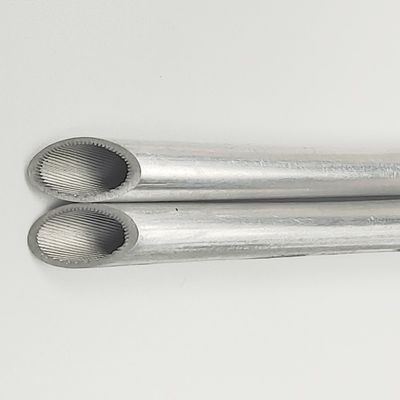

Our 3003 internally threaded aluminum pipes have different internal surface thread shapes and heights, such as thin wall, high tooth, low tooth, fine tooth, small tooth top angle, etc. They can greatly increase the heat exchange area, reduce refrigerant consumption and optimize costs. You can customize the thread shape and height to suit your needs.
Our 3003 internally threaded aluminum tubes can enhance heat transfer in the evaporator by increasing the number of vaporization cores and the degree of turbulence of the liquid film. They also enhance heat transfer in the condenser by forcing condensate away from the heat exchange surface and out through surface tension. They optimize the performance and cost of your refrigeration system.

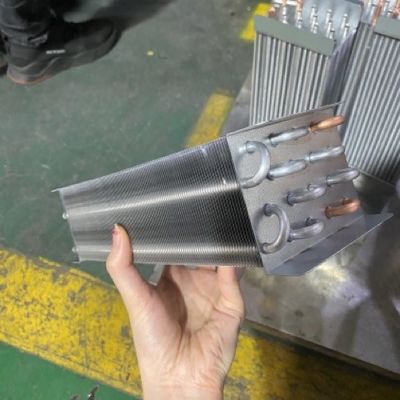

Applications:
condensator
evaporimeter
air conditioner external unit
ice box
refrigerator
Small heat exchanger
frigistor
packaged air conditioner
Dry wet machine
etc.
Techical Parameters:
| Product Name | Model Number | State | SWAAT＞1000 h Ensile Strength＞130 Mpa Yield Strength 50-80 Mpa Elongation≥35% Flare>40% | ||||||||
| (Material) | Outside Diameter/mm | Thickness/mm | Tooth Depth/mm | TWT/mm | Addendum Angle/(°) | Helix Angle/(°) | Number of Teeth/mm | Maximum Length/mm | Shape | ||
| Main Size | 3003 | O | 5-13 | 0.3-0.8 | 0.05-0.25 | 0.35-1.05 | 16-60 | 0-30 | 30-70 | Coil | |
| Example | 7 | 0.47 | +0.25 | 0.97 | 18 | 40-50 | |||||
| 7 | 0.40 | +0.10 | 0.50 | 40-50 | |||||||
| 7.94 | 0.40 | +0.10 | 0.50 | 40-60 | |||||||
| 7.94 | 0.60 | +0.18 | 0.78 | 40-60 | |||||||
| 9.52 | 0.45 | +0.05 | 0.50 | 50-60 | |||||||
| 9.52 | 0.60 | +0.20 | 0.80 | 50-60 | |||||||
Product specifications and performance requirements according to the national standards or customer requirements.
Support and Services:
We can provide customers with professional technical support and services for threaded aluminum pipe applications, including technical guidance on opening, bending, pipe lifting, welding, etc. We will communicate with customers regularly, understand the usage and adjust the service in time according to the actual demand, so as to ensure the customer's production efficiency and product quality, and achieve mutual benefit and win-win situation for both parties.
FAQ.:
Q1: What kind of material alloy is the product?
A1: two materials are available, 3003 anti-corrosion aluminum alloy material and 30588 efficient anti-corrosion aluminum alloy material.
Q2: Product final status?
A2: The final state of the product is soft aluminum coil, threaded pipe inner surface can be coated with inner rising tube oil
Q3: Can I customize the product specifications and requirements?
A3: Different materials and products with different requirements can be customized according to the requirements
Q 4: What is the minimum starting order volume?
A 4: The minimum order volume is 3 tons.
