Small Heat Exchanger 90Chars Grooved Aluminum Pipe: Wide Range Of Applications & Sizes
| Place of Origin | Changzhou China |
|---|---|
| Brand Name | Yun Neng |
| Certification | ISO9001 ISO4001 ISO45001 |
| Model Number | 3003 |
| Minimum Order Quantity | 3 metric tons |
| Price | negotiation |
| Packaging Details | Standard export packaging |
| Delivery Time | 30 working days after received your down payment |
| Payment Terms | T/T |
| Supply Ability | 50,000 mt per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Internally Threaded Pipe | Application | Refrigerating Apparatus，Heat Exchange Equipment |
|---|---|---|---|
| Model Number | 3003 | Outside Diameter/mm | 9.52 |
| Thickness/mm | 0.45 | Tooth Depth/mm | +0.05 |
| TWT/mm | 0.50 | Number Of Teeth | 40-60 |
| Helix Angle/(°) | 18 | Shape | Coil |
| Treatment Process | Oil The Inner Layer | Specification | With Reference To The National Standard Or Customer Requirements, We Can Meet The Customer's Needs For Flaring And Bending, And Can Be Customized To Various Specifications. |
| Details | Tensile Strength>130Mpa, Elongation≥35%, Flaring Rate>40%. Special Production Process, High Density And Efficient Heat Transfer Performance. | Sample | Samples Are Free, Postage Paid By The Customer. |
| High Light | 90Chars internally threaded pipe,internally threaded pipe 9.52mm,heat exchanger tubing 40teeth |
||
Product Description

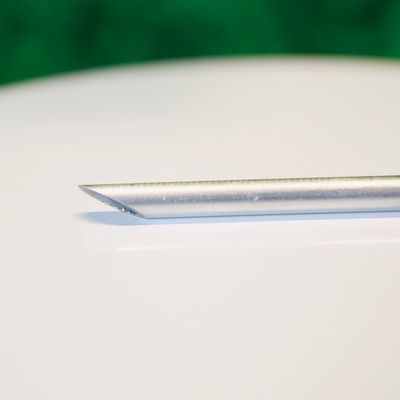

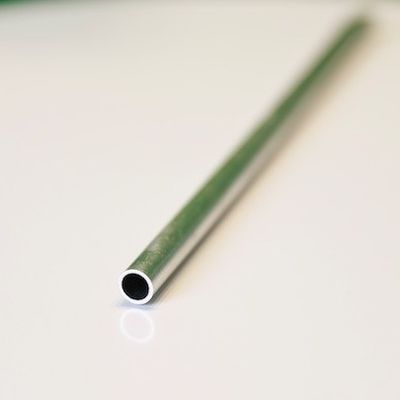

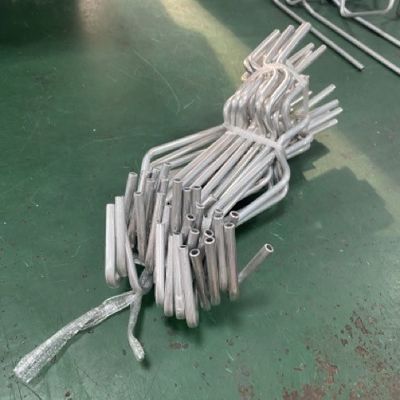

Small Heat Exchanger 90Chars Grooved Aluminum Pipe: Wide Range Of Applications & Sizes
Product Description:
The inner grooves have a helical shape and have been optimized for heat transfer. The heat transfer coefficient of the tube is improved by two times over that of ordinary smooth bore tubes. This greater efficiency can aid in the construction of more compact heat exchangers and the decrease of refrigerant load.
Different groove depths and geometries fulfill regional requirements and refrigerant types in use.
Features:
* Straight grooves
* High heat transfer efficiency
* Easy to shape and bend * Low cost and weight
* Helical grooves
* Very high heat transfer efficiency
* Easy to form and bend * Low cost and weight
Applications:
condensator
evaporimeter
air conditioner external unit
ice box
refrigerator
Small heat exchanger
frigistor
packaged air conditioner
Dry wet machine
etc.
Techical Parameters:
| Product Name |
Model Number (Material) |
State | SWAAT＞1000 h Ensile Strength＞130 Mpa Yield Strength 50-80 Mpa Elongation≥35% Flare>40% | ||||||||
| Outside Diameter/mm | Thickness/mm | Tooth Depth/mm | TWT/mm | Addendum Angle/(°) | Helix Angle/(°) | Number of Teeth/mm | Maximum Length/mm | Shape | |||
| Main Size | 3003 | O | 5-13 | 0.3-0.8 | 0.05-0.25 | 0.35-1.05 | 16-60 | 0-30 | 30-70 | Coil | |
| Example | 7 | 0.47 | +0.25 | 0.97 | 18 | 40-50 | |||||
| 7 | 0.40 | +0.10 | 0.50 | 40-50 | |||||||
| 7.94 | 0.40 | +0.10 | 0.50 | 40-60 | |||||||
| 7.94 | 0.60 | +0.18 | 0.78 | 40-60 | |||||||
| 9.52 | 0.45 | +0.05 | 0.50 | 50-60 | |||||||
| 9.52 | 0.60 | +0.20 | 0.80 | 50-60 | |||||||
Product specifications and performance requirements according to the national standards or customer requirements.
