Aluminum Pipe 3003 The Heat Transfer Area Of Aluminum Internal Thread Aluminum Pipe Is Ar8mm
| Place of Origin | Changzhou China |
|---|---|
| Brand Name | Yun Neng |
| Certification | ISO9001 ISO4001 ISO45001 |
| Model Number | 3003 |
| Minimum Order Quantity | 3 metric tons |
| Price | Negotiation |
| Packaging Details | Standard export packaging |
| Delivery Time | 30 working days after received your down payment |
| Payment Terms | T/T |
| Supply Ability | 50,000 mt per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model Na | 3003 | Outside Diameter/mm | 8±0.05 Or Customized |
|---|---|---|---|
| Thickness/mm | 0.5±0.03 Or Customized | Tooth Depth/mm | +0.22 Or Customized |
| Number Of Teeth | 50 Or Customized | TWT/mm | 0.80 |
| Addendum Angle/(°) | 20±5 | Helix Angle/(°) | 20±2 |
| Treatment Process | Oil The Inner Layer | Shape | Coil |
| Material | Aluminum Alloy Or Aluminum | Length | Customized |
| High Light | 8mm inner grooved tube,0.5mm thick inner grooved tube,Small internally threaded pipe |
||
Product Description

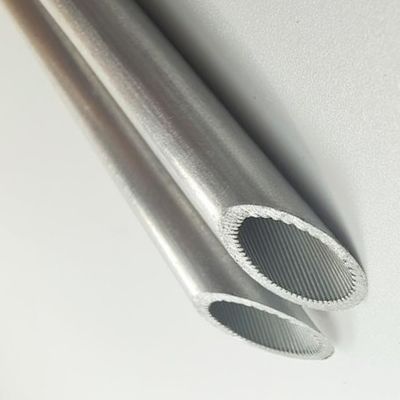

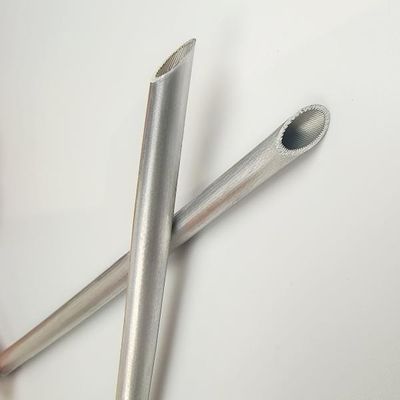

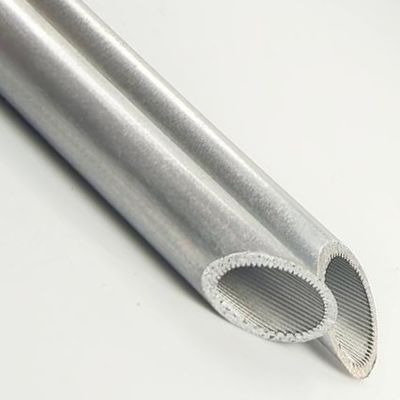

Aluminum Pipe 3003 The heat transfer area of aluminum internal thread aluminum pipe is ar8mm.
Product Description:
3003 high-efficiency corrosion-resistant aluminum pipe with internal thread is a kind of seamless steel pipe with spiral inner wall, which can keep nuclear boiling state under high heat load, thus avoiding film boiling and preventing the pipe from burning out. It is suitable for use in evaporator and condenser flow tubes of various refrigeration equipment. The main media used in the pipeline are: refrigerant, refrigerant, etc. Compared with smooth tube, it has a larger internal surface area, which is beneficial to heat exchange when coolant flows in the tube. Therefore, in view of the good heat exchange performance of internal thread alloy aluminum pipe, it will be more and more popular.
The main production specifications are Φ 9.52 Φ 7.94 Φ 7 Φ 5 and other finished products. The specifications and performance requirements can be customized according to customer requirements.
The inner wall of threaded pipe can be oiled according to customer's requirements. So as to meet the requirements of the rear road riser process products. Production technology The most basic method of internal thread forming is to increase the wall thickness by lightening, and at the same time, in this process, internal thread is generated along the thread direction on the mandrel in the tube. Moreover, the pipe diameter reduction has been greatly improved.
Features:
The product has different tooth shapes such as thin wall, high tooth, low tooth, fine tooth and small tooth, which can be customized according to the needs of use.
This product is made of 3003 anti-corrosion aluminum alloy and our unique high-efficiency anti-corrosion aluminum alloy. The anti-corrosion effect of this product is 10 times better than that of 3003 aluminum alloy. The two materials are selected from.
Threaded aluminum tubes can strengthen the heat transfer in the evaporator-increase the heat transfer area, increase the number of gasification cores and increase the turbulence of liquid film.
Threaded aluminum tube in condenser-increases the heat transfer area in the tube. Under the action of surface tension, condensate is forced to leave the heat transfer surface. It reduces the thickness of the refrigerant liquid film between the tooth tip and the refrigerant.
Technical Parameters:
Internal Thread Aluminum Tubing
| Product Name | Model Number (Material) | State | SWAAT＞1000 h Ensile Strength＞130 Mpa Yield Strength 50-80 Mpa Elongation≥35% Flare>40% | ||||||||
| Outside Diameter/mm | Thickness/mm | Tooth Depth/mm | TWT/mm | Addendum Angle/(°) | Helix Angle/(°) | Number of Teeth/mm | Maximum Length/mm | Shape | |||
| Main Size | 3003 | O | 5-13 | 0.3-0.8 | 0.05-0.25 | 0.35-1.05 | 16-60 | 0-30 | 30-70 | Coil | |
| Example | 7 | 0.47 | +0.25 | 0.97 | 18 | 40-50 | |||||
| 7 | 0.40 | +0.10 | 0.50 | 40-50 | |||||||
| 7.94 | 0.40 | +0.10 | 0.50 | 40-60 | |||||||
| 7.94 | 0.60 | +0.18 | 0.78 | 40-60 | |||||||
| 9.52 | 0.45 | +0.05 | 0.50 | 50-60 | |||||||
| 9.52 | 0.60 | +0.20 | 0.80 | 50-60 | |||||||
Applications:
condensator
evaporimeter
air conditioner external unit
Small heat exchanger
frigistor
packaged air conditioner
Dry wet machine
etc.
